Remove rear blower
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
- Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT .
- Refer to REMOVING THE CENTER ARMREST .
- Refer to REMOVING THE FRONT STORAGE COMPARTMENT TRIM .
- Refer to REMOVING THE CENTER CONSOLE TRIM .
- Refer to REMOVING CUPHOLDER .
- Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .
- Refer to REMOVING FOOTWELL TRIM PANEL ON THE RIGHT .
- Refer to REMOVING THE CENTER CONSOLE .

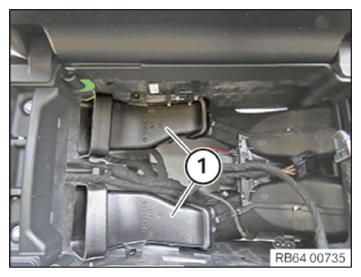

- Remove both air ducts (1).

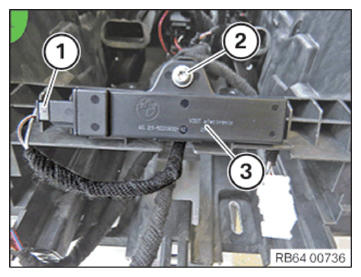

- Disconnect the connector (1).
- Loosen screw (2).
- Remove the interior antenna (3).

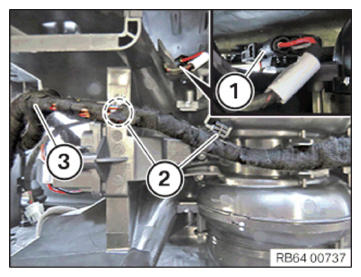

- Unlock and disconnect connector (1).
- Unclip the cable clip (2).
- Remove the wiring harness (3).

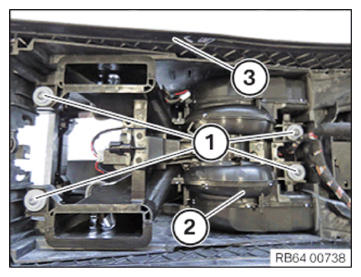

- Loosen screws (1).
- Feed the rear blower (2) out of the center console (3).
