Removing the controller for the blower of the air conditioning system
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING FOOTWELL TRIM PANEL ON THE RIGHT .

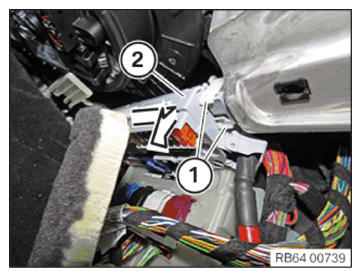

- Unlock the detents (1).
- Remove the power distribution box (2) in the direction of the arrow.
- Release the screw (1) and remove the holder (2).
- Unlock plug connection (3) and disconnect.
- Release the screws (4) and remove the blower (5).
