Install controller for air conditioning system blower
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

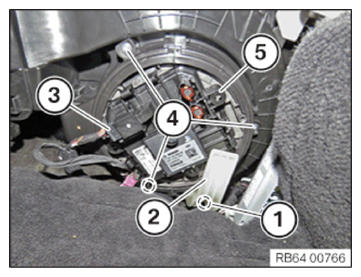

- Correctly position the blower (5).
- Tighten the screws (4).
- Connect connectors (3) and lock.
- Correctly position bracket (2) and tighten screw (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

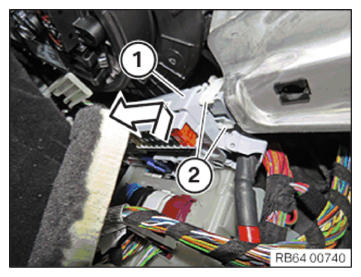

- Install power distribution (1) in arrow direction and snap into the lock mechanism (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Follow-up work
