Replacement of the windshield washer pump

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly .
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: 00... RAISING THE VEHICLE USING A VEHICLE LIFT .

Preliminary work

Removing the cover of the rear right engine compartment.

Courtesy of BMW OF NORTH AMERICA, INC.
- Loosen the lock (1)
- Remove the cover (2).
Covering the vehicle battery
WARNING:
Unprotected battery terminals. Risk of short circuits! Risk of fire!
- Cover the vehicle battery
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
- Cover the vehicle battery with the special tool 2 452 007 as shown.
Refer to REMOVING THE LID FOR THE WASHER FLUID RESERVOIR .
Refer to REMOVING THE MOUNTING OF THE HOOD SEAL .
Refer to REMOVING FRONT RIGHT WHEEL .
Refer to REMOVING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .
Refer to REMOVING WASHER FLUID RESERVOIR .

Remove windshield washer pump

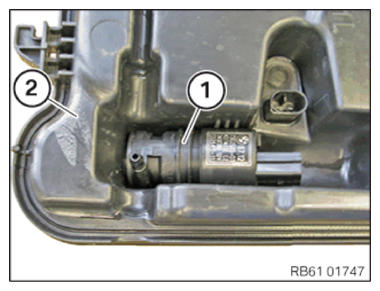

Pull windshield washer pump (1) out of washer fluid reservoir (2).

Courtesy of BMW OF NORTH AMERICA, INC.

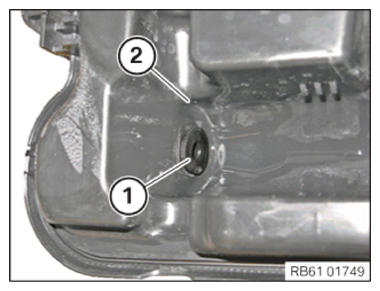

Pull gasket (1) out of washer fluid reservoir (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the window washer pump.
Parts: Windshield washer pump

Follow-up work

Refer to INSTALLING WASHER FLUID RESERVOIR .
Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
Refer to INSTALLING THE MOUNTING OF THE HOOD SEAL .
Refer to INSTALLING THE LID FOR THE WASHER FLUID RESERVOIR .
Installing the rear right engine compartment cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the battery cover .

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
- Remove the special tool 2 452 007 from the battery.
Courtesy of BMW OF NORTH AMERICA, INC.
- Install the cover (2).
- Lock the lock (1).
Refer to INSTALLING THE FRONT RIGHT WHEEL .
Refer to RESETTING THE TIRE PRESSURE MONITOR .
