Adjusting the spray nozzles
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
- Engine compartment lid is open.
NOTE:
TECHNICAL INFORMATION
The spray nozzles of the washer system are preset .
If owing to a customer complaint the setting is to be changed, the typical driving situation (high/low speed; with/without additives) must be taken into consideration. Consider any changes carefully.
The spray nozzles of the washer system are preset .
If owing to a customer complaint the setting is to be changed, the typical driving situation (high/low speed; with/without additives) must be taken into consideration. Consider any changes carefully.

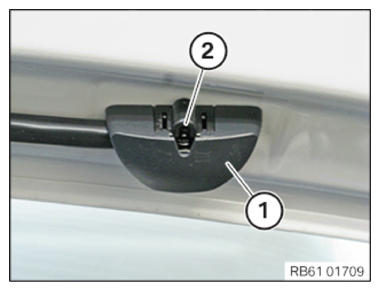

- If necessary adjust the spray nozzle (1) by twisting the screw (2).
