Install the tailgate function module (HKFM)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

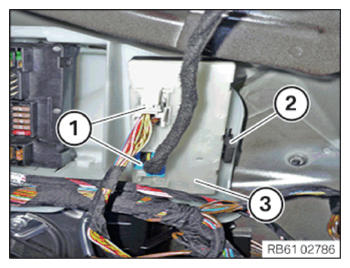

- Feed in the tailgate function module (HKFM) (3) and engage in the detent (2).
- Connect plug (1).
Follow-up work
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to ENCODE/PROGRAM CONTROL UNIT(S) .
