Removing the 12 V socket from the storage compartment in the center console
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Turn the head of the special tool (1) to the left until the marks (arrows) are positioned opposite each other.
- Carefully insert the special tool (1) into the 12 V socket (3).
- if applicable, carefully turn the special tool (1) towards the left until the recesses (2) of the special tool (1) are engaged with the contacts (4) of the 12 V socket (3).
- Turn the head of the special tool (1) towards the right until the special tool is locked in the 12 V power socket (3).

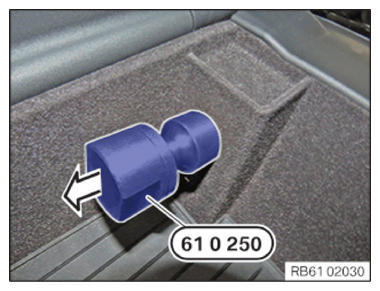

- Pull the special tool 0 496 588 (61 0 250) with the 12 V socket out of the storage compartment in the center console in arrow direction.
- Feed out the corresponding plug connection and disconnect.
- Remove the 12 V power socket.
