Removing the 12 V power socket (front storage compartment)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
- Refer to REMOVING THE CENTER ARMREST .
- Refer to RELEASING THE CENTER CONSOLE TRIM FROM THE CENTER CONSOLE .
- Refer to REMOVING CUPHOLDER .

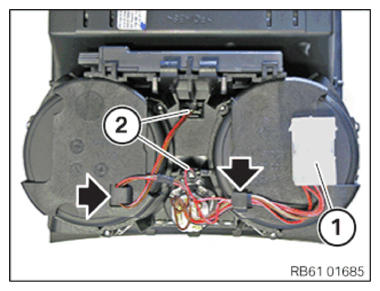

- Unclip the connector (1).
- Unclip the LED module (2) and pull it out of the storage compartment.
- Unclip the cables (arrows) at the cable clips.

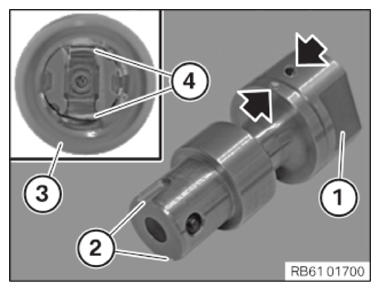

- Turn the head of the special tool (1) towards the left until both marks are positioned opposite each other.
- Carefully insert the special tool (1) into the 12 V power socket (3).
- If applicable, turn the special tool (1) carefully to the left until the recesses (2) of the special tool engage in the contacts (4) of the 12 V power socket (3).
- Turn the head of the special tool (1) to the right until the special tool locks in the 12 V power socket (3).

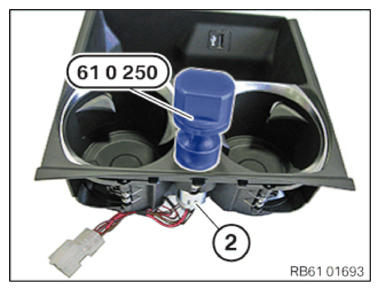

- Pull the special tool 0 496 588 (61 0 250) including the 12 V power socket (2) from the storage compartment.
- Feed out associated cables.
