Installing the switch combination of the additional seat function

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

When replacing the switch combination for the additional seat function: Remounting the trim

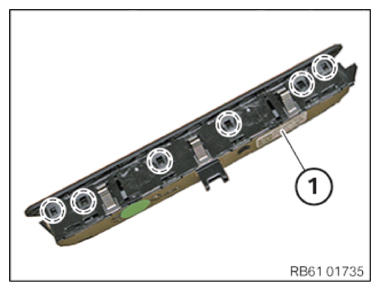

Release all detents on the switch combination (1).
Remove trim from the switch combination (1).

Courtesy of BMW OF NORTH AMERICA, INC.

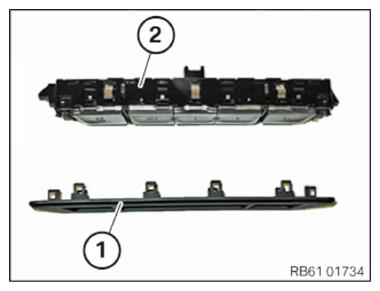

Clip trim (1) to the switch combination (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Check the detent of the switch combination (1) is correctly positioned on both sides.

Courtesy of BMW OF NORTH AMERICA, INC.

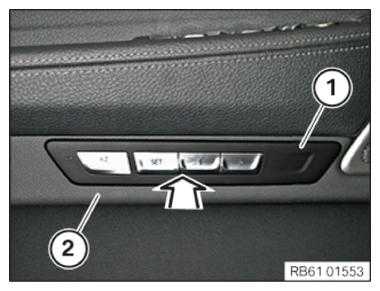

Press the operating facility and trim (1) into the door trim panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

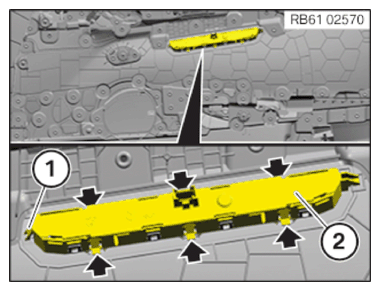

Check the clamps (arrows) of the control unit (2) to ensure they are correctly seated.
Check the detent (1) is fitted correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING FRONT DOOR TRIM PANEL .
Refer to INSTALLING THE MIRROR TRIANGLE COVER .

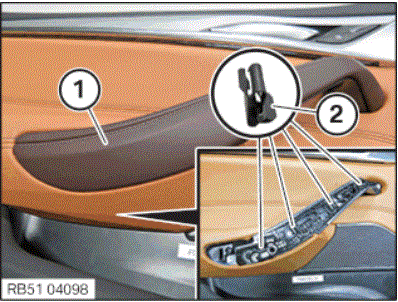

Attaching the cover to the door handle.

Courtesy of BMW OF NORTH AMERICA, INC.
- Renew the clamps (2).
  Parts: Clamps
- Align the cover (1) on the door handle and snap it into the clamps (2).
