Removing the selector lever cap
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

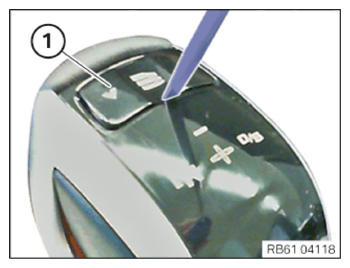

- Lever the rocker button (1) out of the selector lever cap with a slotted screwdriver.
The selector lever cap, rocker button and top base are destroyed in this process.

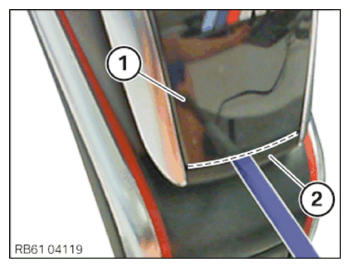

- Lever out the selector lever cap (1) with a slotted screwdriver.
The slotted screwdriver is applied to the marked gap between the selector lever cap (1) and the top base (2).
The selector lever cap and top base are destroyed in this process.

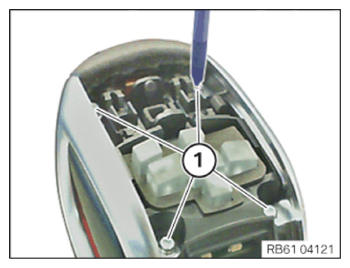

- Release both snap-in hooks of the top base with a small slotted screwdriver.

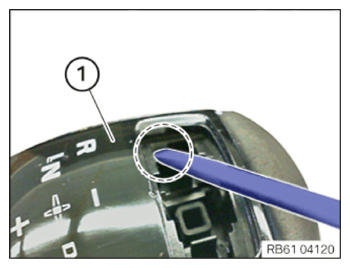

- Place a slotted screwdriver in the recesses (mark) on the side of the selector lever cap (1).
- Remove the selector lever cap (1) from the top base.
The selector lever cap and top base are destroyed in this process.

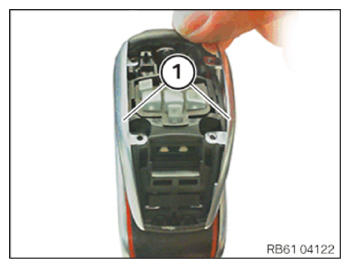

- Loosen screws (1).
- Release and remove the chrome wedge trims (1) at the side detents.
- Remove the rubber component (2).
- Remove the top base (1).
- Remove the operating units (1).
