Installing the selector lever cap
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

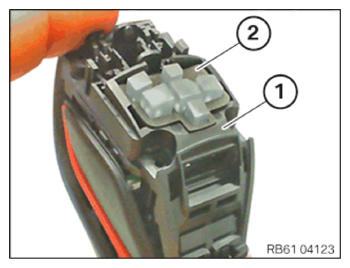

- Position the top base (1).
The top base does not need to engage.
- Install the rubber component (2).

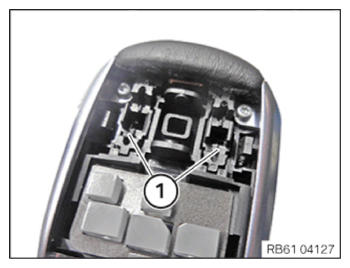

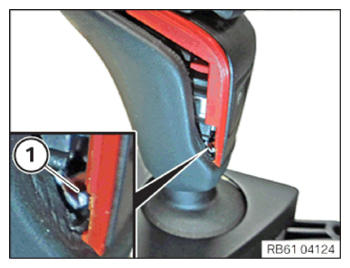

- If applicable, remove the broken off left and right detents (1).

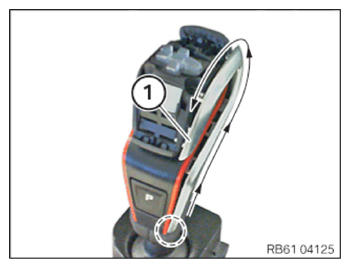

- Thread the chrome wedge trim (1) at the bottom (mark) and, starting from the bottom, snap it in the arrow direction pointing upwards.

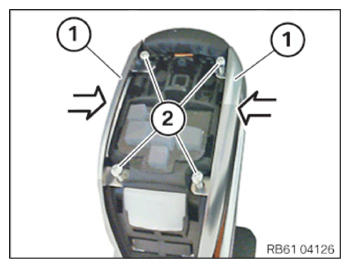

- Press the chrome wedge trims (1) inwards slightly in the arrow direction.
- Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Chrome wedge trim screw connection | ||
|---|---|---|
| Screw | tightening torque | 0.6 Nm |
- Correctly position the operating units (1) and install.

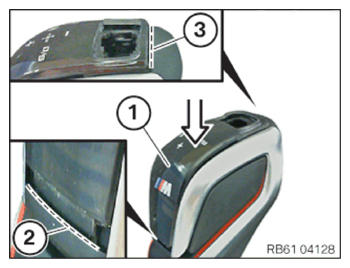

- Position and feed in the selector lever cap (1).
- Make sure that the selector lever cap (1) is correctly inserted in the top base (2).
- Make sure that the selector lever cap is correctly positioned on the selector lever (3).
- Snap-in the selector lever cap (1) in arrow direction.

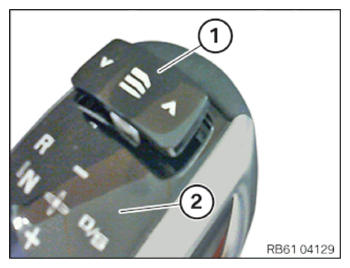

- Position the rocker button correctly (1) and observe the correct alignment of arrows while doing so.
- Clip the rocker button (1) into the selector lever cap.
