Installing the gear selector switch (GWS)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

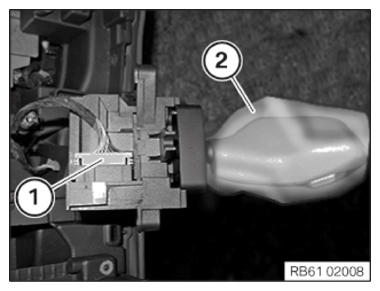

- Feed the cable into the cable clip at the gear selector switch (GWS) (2).
- Connect plug (1).

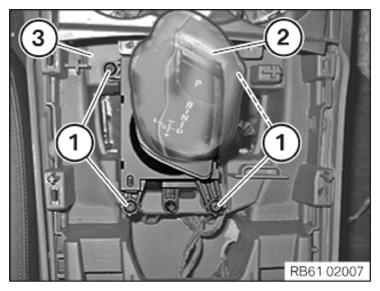

- Position the gear selector switch (GWS) (2) in the center console (3).
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Gear selector switch to support | ||
|---|---|---|
| Oval-head screw Replace screws. |
Tightening torque | 3.3 Nm |
Follow-up work
- Refer to INSTALLING THE CENTER CONSOLE TRIM .
- Refer to INSTALLING THE CENTER ARMREST .
- Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
