Removing the radio operating unit and the air conditioning control panel (decorative strip installed)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
NOTE:
RISK OF DAMAGE
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .
- Protect surfaces from damage.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
- Fit the plastic adhesive tape (1) on the decorative strip (2) and the instrument panel (3).
CONSUMABLE SPECIFICATION
| Yellow plastic adhesive tape | 83199410979 |

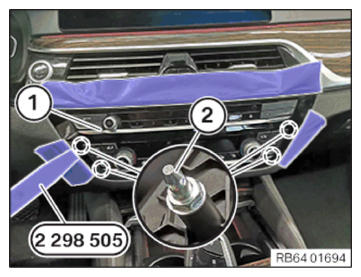

- Lever out the radio operating unit and the air conditioning control panel (1) by using the special tool 2 298 505 at the ball hub (2).
- Feed out the radio operating unit and the air conditioning control panel (1) slightly away.
- Unlock plug connection (1) and disconnect.
- Release the cables (2) from the radio operating unit and the air conditioning control panel (3).
