Remove the control unit in the center console
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT .
- Refer to REMOVING THE CENTER ARMREST .
- Refer to RELEASING THE CENTER CONSOLE TRIM FROM THE CENTER CONSOLE .

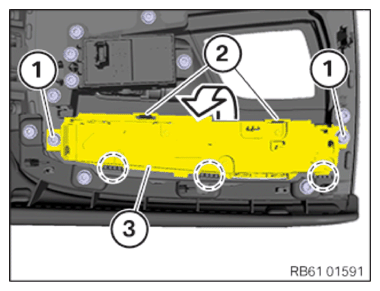

- Loosen screws (1) .
- Loosen the detents (2) .
- Guide the control unit in the center console (3) in the direction of the arrow out of the center console trim.
