Installing the operating facility in the center console
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

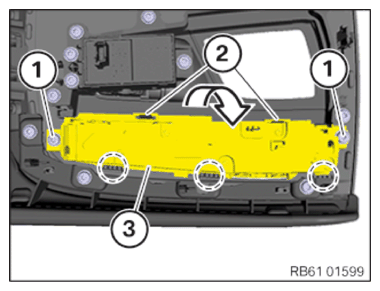

- Feed the operating unit in the center console (3) into the center console trim in the arrow direction.
- Check the detents (2) .
- Replace screws (1)
.
Parts: Screws
- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Operating facility in the center console on center console trim | ||
|---|---|---|
| Screw TS5x12 Replace screws. |
Tightening torque | 1.5 Nm |
Follow-up work
- Refer to FASTENING THE CENTER CONSOLE TRIM ON THE CENTER CONSOLE .
- Refer to INSTALLING THE CENTER ARMREST .
- Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
