Installing the parking brake button
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

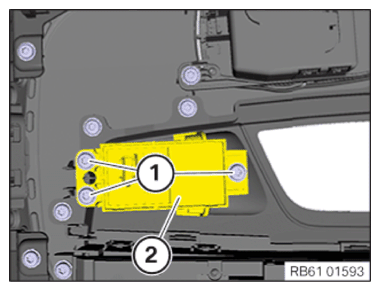

- Position the parking brake button (2) in the center console trim.
- Tighten the screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Parking brake button on center console trim | ||
|---|---|---|
| Screw TS5x12 | Tightening torque | 1.5 Nm |
Follow-up work
- Refer to INSTALLING THE CENTER CONSOLE TRIM .
- Refer to INSTALLING THE CENTER ARMREST .
- Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
