Removing the connecting socket of the USB audio interface in the front storage compartment
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT .
- Refer to REMOVING THE CENTER ARMREST .
- Refer to RELEASING THE CENTER CONSOLE TRIM FROM THE CENTER CONSOLE .
- Refer to REMOVING CUPHOLDER .

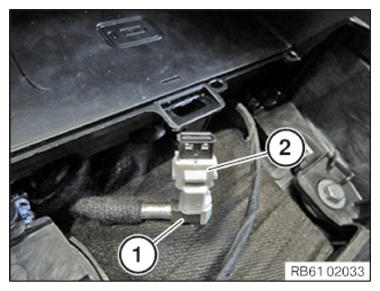

- Release detent (1).
- Press the connecting socket (2) out of the storage compartment toward the bottom.

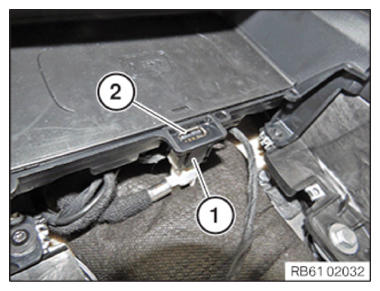

- Disconnect plug connection (1).
- Remove the connecting socket (2).
