Installing right power window switch
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
When replacing the power window switch: remounting switch trim

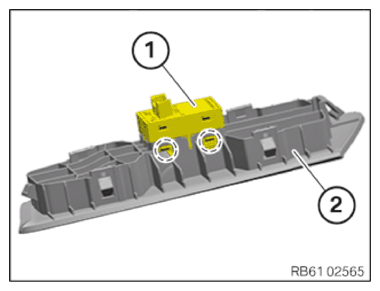

- Loosen the power window switch (1) on both sides at the marked points.
- Remove power window switch (1) from the switch trim (2).
- Replace power window switch (1).
Parts: Power window switch
- Position the power window switch (1) on the switch trim (2) and clip in on both sides in the marked areas.

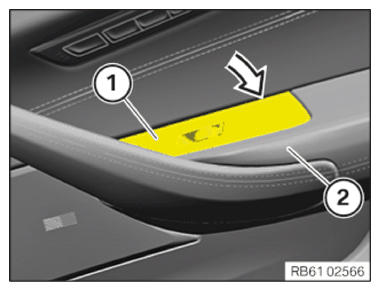

- Thread the power window switch with the switch trim (1) in the arrow direction into the door trim panel (2) and engage it.
Follow-up work
- Refer to INSTALLING FRONT DOOR TRIM PANEL .
- Attaching the cover to the door handle.
- Renew the clamps (2).
Parts: Clamps
- Align the cover (1) on the door handle and snap it into the clamps (2).
- Renew the clamps (2).
- Refer to INSTALLING THE MIRROR TRIANGLE COVER .
