Install the central locking button
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

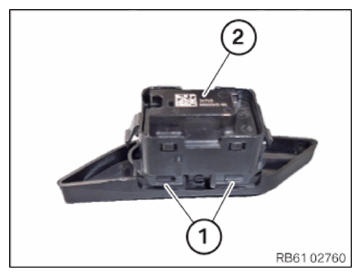

- Check detents (1) on the left and right of the central locking button (2).

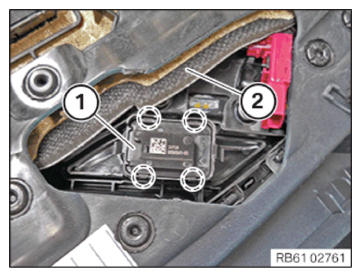

- Position the central locking button (1) and press into the door trim panel (2).
The central locking button (1) must correctly engage in the detents in the marked areas.
Follow-up work
- Refer to INSTALLING THE MIRROR TRIANGLE COVER .
- Attaching the cover to the door handle.
- Renew the clamps (2).
Parts: Clamps
- Align the cover (1) on the door handle and snap it into the clamps (2).
- Renew the clamps (2).
- Refer to INSTALLING FRONT DOOR TRIM PANEL .
