Installing the switch for front passenger airbag deactivation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

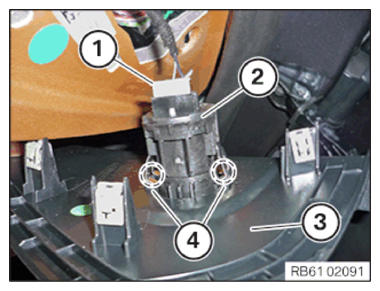

Install the switch for the front passenger airbag deactivation (2) in the side panel of the dashboard (3).
The detent (4) must engage audibly.
Connect the connector (1) with the switch for front passenger airbag deactivation.

G12676280

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
Refer to CONNECTING BATTERY GROUND LEAD .
Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
