Remove power distributor on the rear positive battery cable
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING RIGHT BACKREST SIDE SECTION .
- Refer to REMOVING THE REAR SEAT AND THE REAR SEAT BACKREST (NOT FOR THE SA465 PASS-THROUGH SYSTEM) .
- Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
- Unfold the cover (1) .
- Loosen nut (2) .
- Remove positive battery cable (3)
.

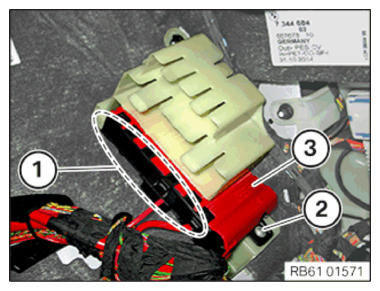

- Unlock and disconnect all connectors (1) .
- Loosen screw (2) .
- Guide out the power distribution box of the positive battery cable (3) .
