Installing the low power distribution box
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

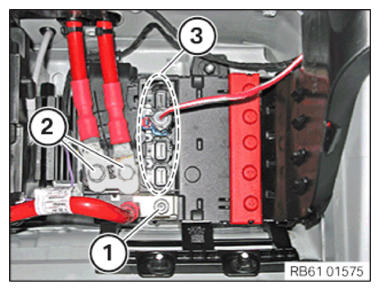

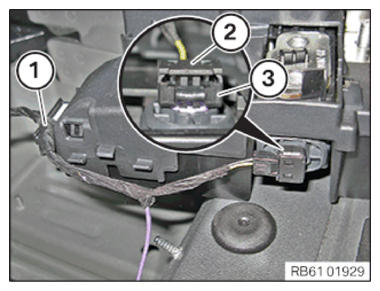

- Connect connector (3).
- Push the lock (2) downward.
- Clip in cable with holder (1).

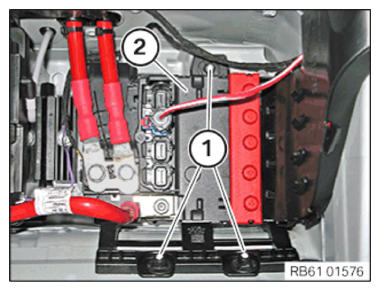

- Insert the power distribution box (2).

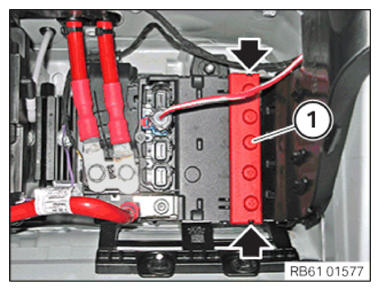

- Tighten plastic nuts (1).
TIGHTENING TORQUES SPECIFICATION
| Power distribution box | ||
|---|---|---|
| Plastic nut with flange | tightening torque | 2.6 Nm |

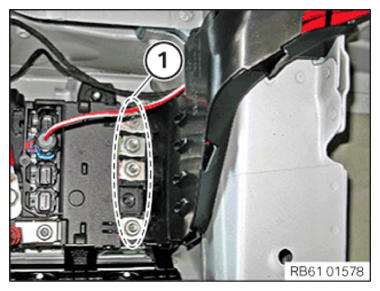

- Tighten all nuts (1).
TIGHTENING TORQUES SPECIFICATION
| Positive battery cable | ||
|---|---|---|
| Positive pole screw | tightening torque | 15 Nm |
TIGHTENING TORQUES SPECIFICATION
| Positive battery cable | ||
|---|---|---|
| Positive pole screw | tightening torque | 15 Nm |
- Tighten the positive battery cables using the screws (2).
TIGHTENING TORQUES SPECIFICATION
| Positive battery cable | ||
|---|---|---|
| M8x16 screw | tightening torque | 15 Nm |

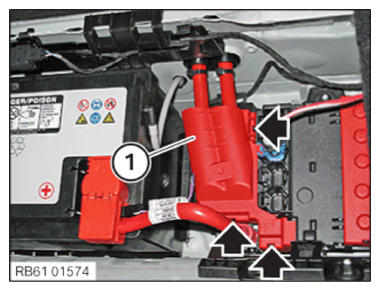

- Connect all connectors (3).
- Clip in the cover (1).
Follow-up work
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
- Refer to INSTALLING THE REAR SEAT AND THE REAR SEAT BACKREST (NOT FOR THE SA465 PASS-THROUGH SYSTEM) .
- Refer to INSTALLING RIGHT BACKREST SIDE SECTION .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
