Removing power distribution for front positive battery cable
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Removing the cover of the rear right engine compartment.
- Loosen the lock (1)
- Remove the cover (2).
Covering the vehicle battery
WARNING: Unprotected battery terminals. Risk of short circuits! Risk of fire!- Cover the vehicle battery
NOTE: The following step(s) must be performed if the listed component(s) is/are installed.- Cover the vehicle battery with the special tool 2 452 007 as shown.
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING THE COWL COVER .
- Refer to REMOVING THE COWL UPPER PART IN THE CENTER .
- Loosen screws (1).
- Loosen the detent (2).
- Feed sealing frame of power distribution (3) out upwards.
- Release cover (1) at detents (2).
- Remove the cover (1) in an upwards direction.
- Undo the nut (1) and feed out the corresponding cable.
- Undo the nuts (2) and feed out the corresponding cables.
- Release the cable clip (arrow).
- Loosen screws (1).
- Loosen screw (2).
- Feed out the power distribution box (3) in an upwards direction.
- Unlock and disconnect connector (1).

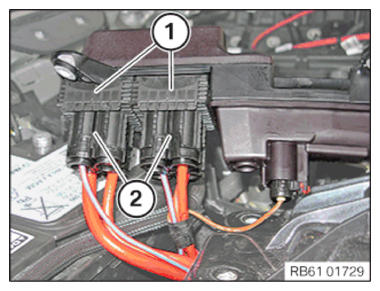

- Lever out the locks (1) at the connectors (2).
- Detach connectors (2).
