Installing tailgate button

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

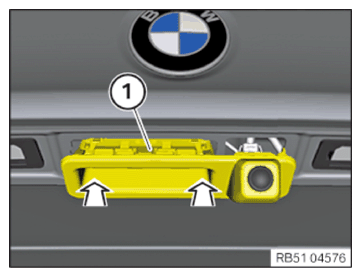

Replace tailgate button (1) .
Parts: Tailgate button
Connect tailgate button (1) with the associated connectors.
Clip the tailgate button (1) straight down into the tailgate.
Check all detents fit correctly, if necessary re-press point by point.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE TAILGATE TRIM PANEL .
Refer to INSTALLING THE POWER TAILGATE SWITCH .
Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
