Checking compression of all cylinders (M5 2018-2022)

Special tools required:

• 11 0 222
• 11 8 732
• 11 8 731
• 2 410 242

• Read out DME fault memory.
• Check stored faults
• Rectify faults
• Delete fault memory

Preliminary work needed:

• Remove SPARK PLUGS .

Disconnect the plug connection (1) to the injectors on the DME control unit (bank 1).

Graphic: N74O0

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect the plug connection (1) to the injectors on the DME control unit (bank 2, if installed).

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew tip (1) from special tool 11 0 222  .

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special tool 11 0 222  in conjunction with 11 8 732  and 11 8 731  .

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 0 222  into special tool 11 8 731  to 10 Nm.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect special tool 2 410 242 to special tool 11 0 222  with the bayonet closure.

Screw in the 100-bar sensor (1) on the special tool 2 410 242 hand-tight.

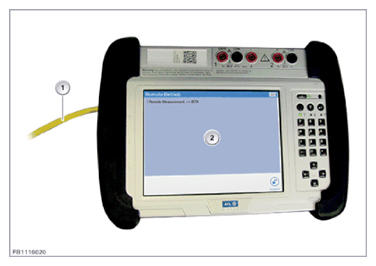

Connect 100-Bar sensor (1) with the Integrated Measurement Interface Box.

Courtesy of BMW OF NORTH AMERICA, INC.

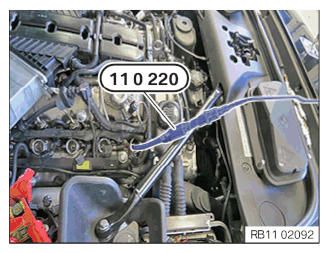

Manually screw special tool 11 0 222  into spark plug thread.

1. Connect vehicle with diagnostic tester.
2. Select service function "Check compression of all cylinders".
3. Observe diagnosis instructions.

Illustration: N74.

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicle with diagnosis

Connect 100-Bar sensor (1) with the Integrated Measurement Interface Box.

Observe diagnosis instructions.

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Delete the fault memory.
