Attaching the engine to the lifting table
- Lift the engine using a workshop crane (1) and the cross-member 0 490 567 (11 0 020)
in the engine mount.
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Engine mount to engine support bracket Screw M12x1.5x40 Tightening torque 100 Nm - Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS

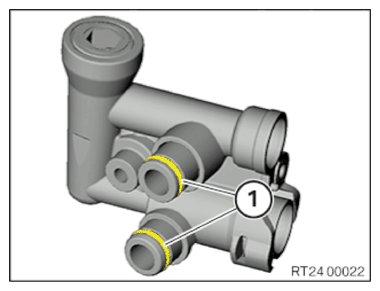

Engine mount to engine support bracket Screw M12x1.5x40 Tightening torque 100 Nm - Replace the O-rings (1) on the lines of the engine oil cooler.
Parts: O-rings
- Coat O-ring (1) with engine oil.
- Position hydraulic lines (2).NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids.
Observe country-specific waste disposal regulations. - Tighten nuts (1).
| Lines to the upstream engine oil cooler | ||
|---|---|---|
| Nut M8 | Tightening torque | 18 Nm |
Checking lining sleeves
- Check the fitting sleeves (1) for correct seating and damage and replace if necessary.
- Slide transmission (1) to the front and position at the engine.
- Apply retaining screws (1) on the lifting table (2) on both sides hand-tight.
Flange-mount transmission
- Transmission flange-mount.
- Rotate torque converter until bore in torque converter is flush with bore in drive plate.
- Join and tighten the transmission bolts (arrows).
| Transmission to engine | ||
|---|---|---|
| M8 M10 |
tightening torque | 19 Nm |
| tightening torque | 38 Nm | |
Remove the special tool from the torque converter
- Release the screws (1) and (2).
- Remove the special tool 0 494 451 (24 4 160) .
- Replace screws.
Parts: Screws
- First screw the torque converter onto the vertically arranged elongated hole.
It is imperative to first screw the torque converter on the vertically arranged elongated hole.
- Turn the torque converter until the elongated hole is visible in the opening.
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Torque converter to flywheel M10
Replace screws.tightening torque 60 Nm - Crankshaft at central bolt may only be turned clockwise.
- Observe the tightening sequence of the additional five screws (torque converter on flywheel) compulsorily:
Tightening sequence: 1 - 4 - 3 - 6 - 5 - 2
The screw connection (1) is the vertically arranged elongated hole in the torque converter.
TIGHTENING TORQUE SPECIFICATIONSTorque converter to flywheel M10
Replace screws.tightening torque 60 Nm - Install the cover (1).
- Position the prop shaft in front (1).
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).
| Prop shaft before the front axle differential | ||
|---|---|---|
| Replace screws. Joining torque and angle of rotation must be observed without fail. |
Tightening torque | 25 Nm |
| Angle of rotation | 45° | |
Installing clean air pipe of cylinder bank 1
- Position the clean air pipe of cylinder bank 1 (2) in direction of arrow and slide it on.
The retaining clips (1) must engage audibly.
- Position the tank vent line (2) and push it on.
The tank ventilation line (2) must be audibly locked to the catch (1).
- Detach the engine from the engine mounting brackets using a workshop crane and the crossmember 0 490 567 (11 0 020)
.
- Position the holder for equalization tank (1).
Installing wiring harness section for ignition system of bank 1
- Feed in ground cable and position.
- Tighten nut (1).TIGHTENING TORQUE SPECIFICATIONS
Ground cable to hold-down device Nuts Tightening torque 5.5 Nm - Engage wiring harness section in holders (4).
- Engage wiring harness section with holders (1).
- Tighten screws (2).TIGHTENING TORQUE SPECIFICATIONS
Cable duct M6x16 screw Tightening torque 10 Nm - Tighten nut (3).
| Ground cable to hold-down device | ||
|---|---|---|
| Nuts | Tightening torque | 5.5 Nm |
Installing wiring harness section for ignition system of bank 2
- Feed in wiring harness section and position.
- Engage wiring harness section in holders (4).
- Engage wiring harness section with holder (1).
- Tighten nut (3).TIGHTENING TORQUE SPECIFICATIONS
Ground cable to hold-down device Nuts Tightening torque 5.5 Nm - Tighten down screw (2).TIGHTENING TORQUE SPECIFICATIONS
Cable duct M6x16 screw Tightening torque 10 Nm - Tighten nut (3).TIGHTENING TORQUE SPECIFICATIONS
Ground cable to hold-down device Nuts Tightening torque 5.5 Nm - Tighten down screw (2).TIGHTENING TORQUE SPECIFICATIONS
Cable duct M6x16 screw Tightening torque 10 Nm - Engage wiring harness section in marked areas (1).
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATIONS
Holder, expansion tank M6x16 screw Tightening torque 8 Nm - Clip the line (2) into the cable bracket.
- Position the hose (1) and clip in.
- Position the equalization tank for the charge air cooler.
- Catch and dispose of escaping coolant.
- Press coolant lines (4) in the lock (3) and lock.
- Position connecting bracket (2) of the coolant line on the charge air cooler.
The retaining spring (1) must engage audibly.
- Tighten down screw (2).TIGHTENING TORQUE SPECIFICATIONS
Low-temperature coolant circuit expansion tank Tightening torque screw 2.6 Nm - Top up coolant to maximum mark.
- Top up coolant.
- Install sealing cap (1) of the equalization tank for the charge air cooler.
Installing the Lambda oxygen sensor for the cylinders 1 to 4
- Position the Lambda oxygen sensor (1).
- Tighten the Lambda oxygen sensor (1) with the special tool 0 491 074 (11 7 020)
.TIGHTENING TORQUE SPECIFICATIONS
Lambda control sensor Front oxygen sensor M18X 1.5 tightening torque 50 Nm - Engage cable into the latch mechanisms (2).
- Attach the connector (1) and engage in the holder.
Installing the Lambda oxygen sensor for the cylinders 5 to 8
- Position the Lambda oxygen sensor (1).
- Tighten the Lambda oxygen sensor (1) with the special tool 0 491 074 (11 7 020)
.TIGHTENING TORQUE SPECIFICATIONS
Lambda control sensor Front oxygen sensor M18X 1.5 tightening torque 50 Nm - Engage cable into the latch mechanisms (2).
- Attach the connector (1) and engage in the holder.
- For equipment specification up to 31/07/2018
- Position the transmission oil thermostat (1) with the wires.
- Clip the transmission oil thermostat (1) into the decoupling elements (2) to the bottom.
- For equipment specification up to 31/07/2018
- Replace sealing rings.
Parts: Sealing ring
- Position the hydraulic lines (1) and (2) to the transmission oil cooler.
- Tighten down screw (3).TIGHTENING TORQUE SPECIFICATIONS
Transmission oil line to transmission M6x25
Replace the sealing ring.tightening torque 8 Nm - For equipment specification from 01/08/2018 on
- Replace seals (1).
Parts: Seals
- For equipment specification from 01/08/2018 on
- Install the thermostat (2) in the connections on the transmission.
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Transmission oil lines to thermostat/automatic transmission M6x25 tightening torque 8 Nm - For equipment specification from 01/08/2018 on
- Install the transmission oil line (2) in thermostat (3).
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Transmission oil lines to thermostat/automatic transmission M6x25 tightening torque 8 Nm - Tighten nut (1).TIGHTENING TORQUE SPECIFICATIONS
Transmission oil line to transmission M6x25
Replace the sealing ring.tightening torque 8 Nm - Loosening the luggage strap (1).
- Connect plug connection (1) and lock.
- Connect the plug connection (1) on the VTG and lock.
- Fix wiring harness fasteners (2).
- Connect the plug connection (3) on the automatic transmission and lock.
- Remove ground cable.
- Tighten down screw (4).TIGHTENING TORQUE SPECIFICATIONS
Ground connection on transmission M6x12 screw Tightening torque 10 Nm - Replace V-band clamp.
Parts: V-band clamp
- Replace gasket.
Parts: Seal
- Install the lower catalytic converter near engine (4).
- Slide the V-clip (2) towards the bottom onto the catalytic converter near engine.
- Position the V-ribbon clip on the catalytic converter near the engine.
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Top catalytic converter to bottom catalytic converter V-band clamp
Replace V-band clamp.Tightening torque 14 Nm - Tighten the nuts in area (3).TIGHTENING TORQUE SPECIFICATIONS
Bottom catalytic converter Nut M8
Replace nuts.tightening torque 23 Nm - Equipment specification with gasoline particulate filter:
Tighten nut (2).
TIGHTENING TORQUE SPECIFICATIONSDifferential pressure sensor to holder Nut M5 tightening torque 5.5 Nm - Equipment specification with gasoline particulate filter:
Connect connectors (1) and lock.
- Equipment specification with gasoline particulate filter:
Tighten nut (2).
TIGHTENING TORQUE SPECIFICATIONSDifferential pressure sensor to holder Nut M5 tightening torque 5.5 Nm - Equipment specification with gasoline particulate filter:
Connect connectors (1) and lock.
- Connect and lock the coolant ventilation line (2) engine-side.
- Connect and lock the coolant ventilation line (1) radiator-side.
- Tighten down screws (3).TIGHTENING TORQUE SPECIFICATIONS
Coolant reservoir M6x20 screw Tightening torque 11 Nm - Clip in the fuel lines in area (4).
