Remove the engine

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Engine damage due to missing motor oil.
Missing motor oil following repairs to the components in the oil circuit or replacement of the engine can lead to damage to the engine.

Following repairs to components in the oil circuit or replacement of the engine, do not start the engine without observing the repair NOTES .
It is imperative that you observe the repair notes following repairs to components in the oil circuit or replacement of the engine.
For additional information, see: Observe the appropriate service information for the following repairs to components in the replacement of the engine

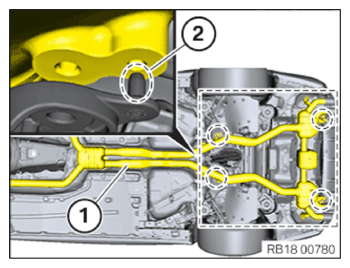

WARNING: Hot exhaust system.
Risk of burning!

Any work must exclusively be carried out with an exhaust system that has cooled down.

Suction the air conditioning

See additional information.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operations shown only for one side must be carried out on both sides.

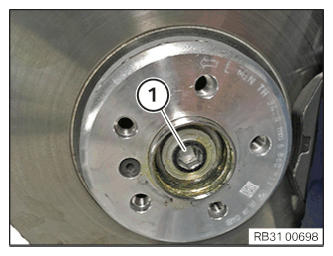

Press brake pedal.

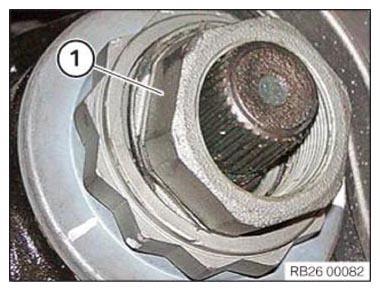

Loosen the collar screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect all negative battery leads

See additional information.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the cover panel of the slave DME control device

NOTE: RISK OF DAMAGE
Damage to the acoustic cover/design cover.
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover.

Disassemble or mount the acoustic cover/design cover carefully.
Disassemble or mount snap-lock couplings of the ball pivots one after the other.
Disassemble or mount the acoustic cover/design cover only at temperatures > 20°C.
Use only distilled water as an auxiliary material during installation, no lubricants.

Unlatch the cover panel of the slave DME control device (2) up and out of the clamps (1).
Remove the cover panel of the slave DME control device (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the cover panel of the master DME control unit

Disassemble or mount the acoustic cover/design cover carefully.
Disassemble or mount snap-lock couplings of the ball pivots one after the other.
Disassemble or mount the acoustic cover/design cover only at temperatures > 20°C.
Use only distilled water as an auxiliary material during installation, no lubricants.

Disengage the cover panel of the master DME control unit (1) upward from the clamps (2) and the guide pins (3).
Remove the cover panel of the master DME control unit (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the acoustic cover

Disassemble or mount the acoustic cover/design cover carefully.
Disassemble or mount snap-lock couplings of the ball pivots one after the other.
Disassemble or mount the acoustic cover/design cover only at temperatures > 20°C.
Use only distilled water as an auxiliary material during installation, no lubricants.

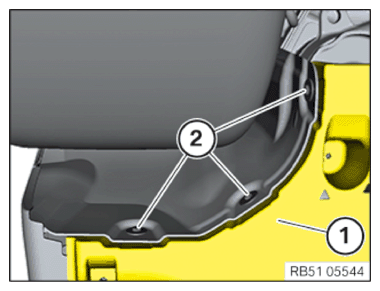

Unclip the acoustic cover (1) upward from the detents (2).
Remove acoustic cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the control unit bracket for cylinders 1 to 4

Loosen screw (1).

Loosen the cable clip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage the wires and connectors (1) upwards on the adapter plate.

Courtesy of BMW OF NORTH AMERICA, INC.

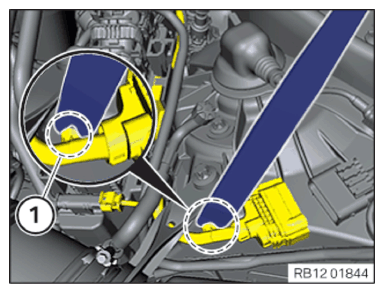

Unlock and disconnect plug connections (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connections (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen the cable clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Guide out and remove the control unit bracket (1) with the control units upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Partially removing the vacuum pump

Unlock and disconnect the vacuum line at the closure (1).
Set the vacuum line aside.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Unlock and disconnect the tank vent line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Release the cover (1) at the detents (2).

Remove the cover (1) in an upwards direction.

Courtesy of BMW OF NORTH AMERICA, INC.

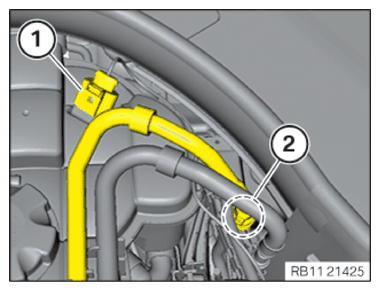

Loosen nuts (1).
Remove positive battery cables (2) from the remote positive terminal.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the fuel hose

Protect the ignition coils from escaping fuel with a cloth.

Unlock and disconnect the fuel hose on the retaining clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect fuel hose (2) on the retaining clip (1).
Remove fuel hose (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing mount for DME master control module support

Disengage the positive battery cable on the holders (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).
Remove mount for DME master control module (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connections (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage clip of the wiring harness (1) with conventional expanding rivet jack.

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage the engine wiring harness on the holder (2).
Unlock transmission wiring harness in area (1) and disengage upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing holder of DME control unit for cylinders 5 to 8

Unlock and disconnect plug connections (1).

Loosen the cable clip (2) upwards from the adapter plate.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen the cable clip (1).

Loosen screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen connector holder (1) upwards.
Carefully push the holder of the refrigerant line (3) aside.
Thread out holder with the DME control unit of cylinders 5 to 8 (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the cover in the engine compartment on the left

Disassemble expanding rivet (1).
Remove the cover in the engine compartment on the left (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the cover in the engine compartment on the right

Disassemble expanding rivet (1).
Remove cover in the engine compartment on the right (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Release left front-end strut

NOTE: RISK OF DAMAGE
Use of an incorrect tool (impact screwdriver) to release and tighten the screws.
Damaged thread.

Only use a standard tool (e.g. reversible ratchet) to release/tighten the screws.

Release screws (1) and (2) the strut brace (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Releasing the right front-end strut

NOTE: RISK OF DAMAGE
Use of an incorrect tool (impact screwdriver) to release and tighten the screws.
Damaged thread.

Only use a standard tool (e.g. reversible ratchet) to release/tighten the screws.

Release screws (1) and (2) the strut brace (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove front cross connection

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Detach the Bowden cable (1).
Feed out the cross connection (2) with the holders (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove left intake silencer housing

Removing the left intake filter housing (equipment specification with refrigerant firewall)

Loosen hose clamp (1).
Unclip the line in area (2).
Detach the bellows (3) from the clean air tube.
Feed out the line in area (4) downward at the firewall.

Courtesy of BMW OF NORTH AMERICA, INC.

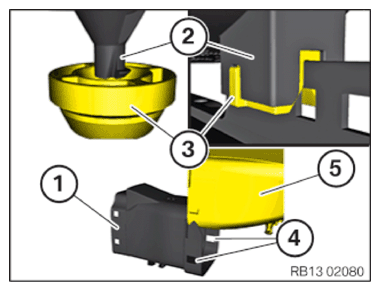

Carefully release the centering pin (2) at the intake filter housing (5) upwards and out of the decoupling elements (3).
Unlock the detents (4) at the clean air tube (1).
Remove intake silencer housing (5) towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen hose clamp (1).
Unclip the line (2).
Detach the bellows (3) from the clean air tube.

Courtesy of BMW OF NORTH AMERICA, INC.

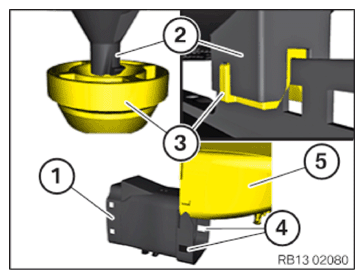

Carefully release the centering pin (2) at the intake filter housing (5) upwards and out of the decoupling elements (3).
Unlock the detents (4) at the clean air tube (1).
Remove intake silencer housing (5) towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove right intake silencer housing

Loosen hose clamp (1).
Unclip the line (2).
Detach the bellows (3) from the clean air tube.

Courtesy of BMW OF NORTH AMERICA, INC.
Carefully release the centering pin (2) at the intake filter housing (5) upwards and out of the decoupling elements (3).
Unlock the detents (4) at the clean air tube (1).
Remove intake silencer housing (5) towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the rear top cross connection

Loosen screws (1).
Loosen screws (2).
Snap out the cable holder (3) in a downwards motion from the cross-connection (4) at the top rear.
Guide out and remove the top rear cross connection (4) to the engine.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing fan cowl with electric motor

Loosen screw (1).
Unlock plug connection (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
Unclip and feed out wiring harness mounting (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
F90 only:
Release all bolts (arrows).
Push the front underbody protection (1) to the front slightly and guide out under the thrust field (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Unclip the hose support (2) from the fan cowl (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Guide out the fan cowl (1) upwards at the coolant hoses.

Courtesy of BMW OF NORTH AMERICA, INC.

Only if work is performed on the removed engine

WARNING: Hot fluids.
Risk of scalding!

Conduct all work in the vehicle wearing appropriate personal protective equipment only.

NOTE: TECHNICAL INFORMATION
Make sure the vehicle is operating temperature for engine oil service (engine oil temperature > 70°C).

Pull cover of the oil drain screw (1) downwards and turn anti-clockwise.

Courtesy of BMW OF NORTH AMERICA, INC.
Release oil drain plug (1).
Remove oil drain screw (1) with sealing ring.
NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids.
Observe country-specific waste disposal regulations.
Catch the motor oil with a suitable collecting vessel.
Screw in the oil drain plug hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the stiffening plate

NOTE: TECHNICAL INFORMATION
Secure component against falling.

NOTE: TECHNICAL INFORMATION
Driving without thrust field is not permissible.

Loosen screws (1).
Remove screws (arrows).
Pull out and remove the thrust field (3) on the covers of the steering assembly (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Drain the high-temperature coolant circuit

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids.
Observe country-specific waste disposal regulations.

Unlocking the retaining clip (1) on the flange of the coolant line (2) with a suitable screwdriver (3).
Detach flange (2) of coolant line backwards.

Courtesy of BMW OF NORTH AMERICA, INC.

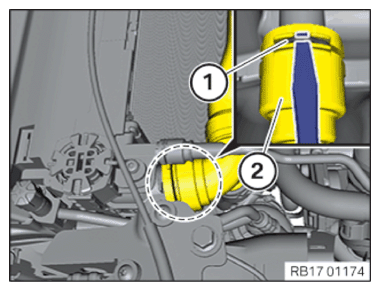

Unlock and disconnect the coolant hose in the area (2) at the retaining clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Partial installation of engine oil cooler

Secure the engine oil cooler (2) from falling down.
Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Detach the engine oil cooler (2) downward from the snap-in lugs (1) on the crash pad.
Remove the engine oil cooler (2) with the crash pads.

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnecting the transmission oil cooler line

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Unlock the transmission oil cooler line (1).
Disconnect the transmission oil cooler line (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the left front bottom wheel arch cover

NOTE: Description is for left component only. Procedure on the right side is identical.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

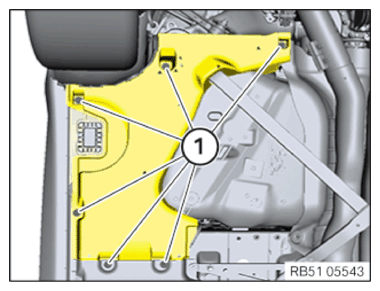

Loosen screws (1).
Guide the wheel arch cover (2) out.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the front right lower wheel arch cover

NOTE: Description is for left component only. Procedure on the right side is identical.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Loosen screws (1).
Guide the wheel arch cover (2) out.

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect refrigerant lines

Loosen screws (1).
Detach the refrigerant line (2) and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect coolant lines (1).
Place coolant lines to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the coolant hose between the coolant radiator and engine

Loosen screw (1).
Pull off coolant hose (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the coolant hose in the area (2) at the retaining clips (1).
Remove coolant hose (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock the coolant line on the retaining clip (1) and disconnect it.
Guide out the coolant line.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Guide out the intake line (2) entirely upwards and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the coolant return hose (1) on the expansion tank.

Courtesy of BMW OF NORTH AMERICA, INC.

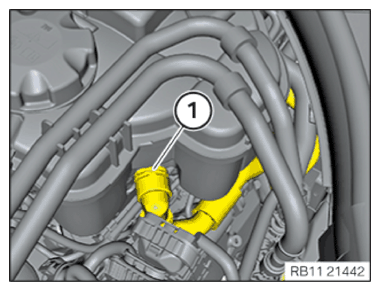

Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing coolant pump for low-temperature, left

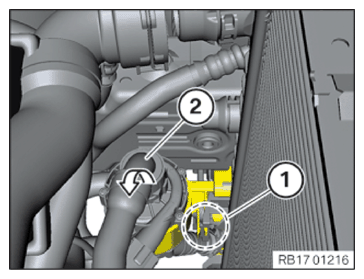

Releasing electric coolant pump of feed line from holder

Unlock retaining lug (1).
Turn the electric coolant pump (2) out clockwise and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the coolant hoses (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect.
Take out coolant pump.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove coolant pump for low temperature on right

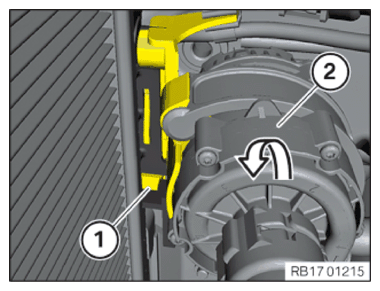

Loosen electric coolant pump of return line from holder.

Unlock retaining lug (1).
Unscrew the electric coolant pump (2) counter clockwise and put it aside.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen wiring harness fastening (1).
Unlock and disconnect the coolant hoses (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect.
Take out coolant pump.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the rear diffuser

Remove screws (arrows).
Loosen nuts (1).
Remove the rear diffuser (2) toward the front.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the undershield on the left fuel tank

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (2).
Remove the undershield (1) at the fuel tank on the left.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing undershield on the fuel tank on the right

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (2).
Remove the underbody paneling (1) at the fuel tank on the right.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing reinforcement strut

Loosen screws (1).
Loosen nuts (2).
Remove reinforcement strut (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing rear tunnel connecting support

Loosen screws (1).
Loosen screws (2).
Removing rear tunnel connecting support (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove exhaust system

Unlock connector (1).
Disconnect the connector (1) of the exhaust flap (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock connector (1).
Disconnect the connector (1) of the exhaust flap (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Use a suitable jack to secure the exhaust system (1) from falling down. If the exhaust system is drained while under tension, there is the risk that the retaining bolts (2) will break.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Lower the exhaust system holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
Loosen screw (1).
NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

Courtesy of BMW OF NORTH AMERICA, INC.
Lay ground strap to one side.
Loosen screw (3).
Lower the exhaust system holder (2).
Version with temperature sensors:
Release the temperature sensors upstream of gasoline particulate filter (2).
Release the temperature sensors downstream of gasoline particulate filter (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Execution with RDE2:
Unclip connector (3) from the holder.
Unlock plug connection (2) and disconnect.
Unclip oxygen sensor cable (1) from the clamps.

Courtesy of BMW OF NORTH AMERICA, INC.
Unclip connector (3) from the holder.
Unlock plug connection (2) and disconnect.
Unclip oxygen sensor cable (1) from the clamps.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen union nut (3).
Unclip the pressure line (2) from the holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen union nut (3).
Unclip the pressure line (2) from the holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Release nut (1).
Release nuts (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Release nut (1).
Release nuts (2).
Remove the exhaust system backwards.

Courtesy of BMW OF NORTH AMERICA, INC.
Execution without RDE2:
Release nuts 1.
Slide the circlip (2) towards the rear.
Remove the exhaust system backwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the heat shields

Loosen screws and nuts (arrows).
Remove the heat shield (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws and nuts (arrows).
Remove the heat shield (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the prop shaft completely

NOTE: RISK OF DAMAGE
Damage to prop shaft during removal.
Non-observance of the removal guidelines for the prop shaft on the rear axle differential may cause severe damage.

Loosen the recessed nut against the direction of travel in clockwise direction. The prop shaft must be loosened on the recessed nut only and exclusively in the direction of rotation otherwise the anti-twist lock of the bi-hexagonal flange nut is damaged.
In the event of a damaged anti-twist lock on the bi-hexagonal flange nut: Replace the rear axle differential.

NOTE: TECHNICAL INFORMATION
Compliance with the following instructions is required to avoid a humming from the prop shaft after refitting the prop shaft.

Before releasing the flexible disc screw connection (1) in front of the prop shaft, it must be marked with flexible disc (2) and three-hole flange (3) in a single plane.

Courtesy of BMW OF NORTH AMERICA, INC.
It is a must to reassemble the three-hole flange (3) with the flexible disc (2) in the same position.
Loosen screws.

Courtesy of BMW OF NORTH AMERICA, INC.

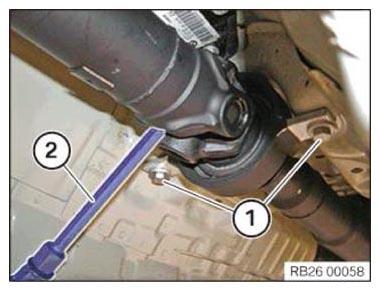

Loosen screws (1).
Secure the juncture shaft against twisting at the central universal joint using a suitable tool (2).
Only completely remove the screws of central mount (1) after having opened the recessed nut.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage to rear axle differential.
Non-observance of the removal and installation guidelines may cause severe damage to the rear axle differential.

Do not use the double hexagon head flange nut as counter support.

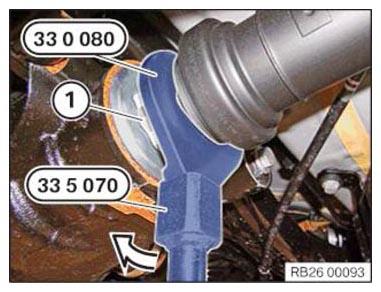

Loosen the recessed nut in clockwise direction, see the direction of the arrow, using special tools 0 495 554 (33 5 070) and 0 496 959 (33 0 080).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Do not use the twelve-edge flange nut (1) as a counter support.

NOTE: RISK OF DAMAGE
Damage to the bellows on the prop shaft.
Non-use of the special tool may lead to damage to the bellows on the prop shaft.
The special tool must be used when removing the prop shaft, otherwise the bellows may be damaged with the mounting lever.

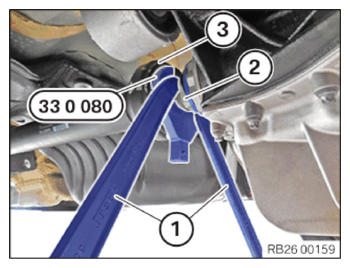

Position the mounting lever (1) and the special tool 0 496 959 (33 0 080) between the prop shaft (3) and the recessed nut (2) with help from a second person.
Push the prop shaft (3) out of the rear axle differential with the mounting lever (1) and the special tool 0 496 959 (33 0 080) .

Courtesy of BMW OF NORTH AMERICA, INC.

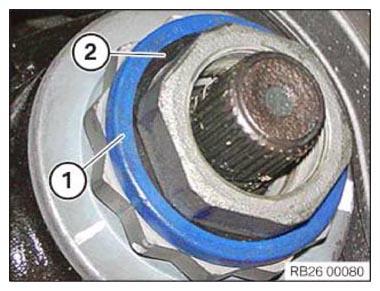

Remove mounting clip (1) and gasket (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove recessed nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen ground strap from transmission

Release the screw (1) and release the ground strap (2).

Courtesy of BMW OF NORTH AMERICA, INC.

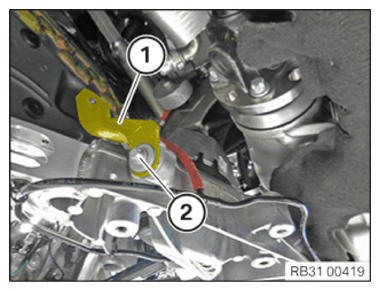

Remove the right engine mount reinforcement strut

NOTE: Only perform the operation on the right side.

Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (2).
Remove reinforcement strut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the spring strut holder on left and right

NOTE: Perform the steps on the right and left side.

Loosen the output shaft from the wheel bearing

Press brake pedal.

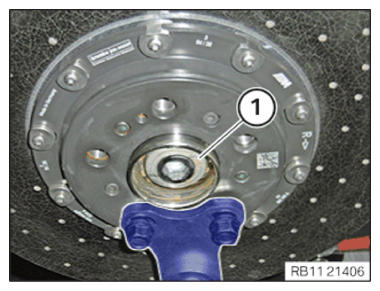

Loosen the collar screw (1).
The output shaft is released from the wheel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

Releasing the upper wishbone from the swivel bearing

Loosen nut (1).
Pull out screw (2).
Release the upper wishbone (4) from the swivel bearing (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the swivel bearing

Fix the swivel bearing (1) to the body using special tool 2 413 317 in such a way as to prevent it from tipping outwards.
Do not allow the swivel bearing (1) to hang down from the brake hose!

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the spring strut holder

Loosen nut (1).
Remove the bolt (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen nut (1).
NOTE:
Counter-hold at the Torx socket.
- Release the anti-roll bar link (2) from the spring strut holder.
Courtesy of BMW OF NORTH AMERICA, INC.
Release the screw (2) from the spring strut holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Failure to comply with the specification.
Component damage.
All specifications must be observed and complied with.
Expand spring strut holder (1) with special tool 2 414 636.

Courtesy of BMW OF NORTH AMERICA, INC.
Protecting the output shaft from damage with a towel is mandatory (2).
Feed out and remove the spring strut holder (1) downward.

Removing the output shafts

Remove left output shaft

NOTE: TECHNICAL INFORMATION
It is paramount to replace the radial shaft seal each time the output shaft is removed.
Secure output shaft (1) against falling out.

Position the aluminum drift (2) on the output shaft (1).

Knock out the output shaft (1) from the front axle transmission with an aluminum mandrel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

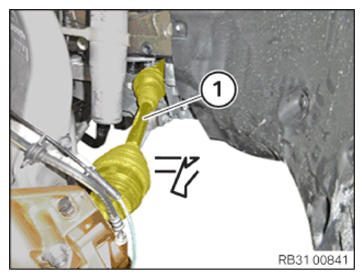

Remove the output shaft (1) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove right output shaft

NOTE: TECHNICAL INFORMATION
It is paramount to replace the radial shaft seal each time the output shaft is removed.

Secure output shaft (1) against falling out.
Position the aluminum drift (2) on the output shaft (1).

Knock output shaft (1) with the aluminum drift (2) out of the bearing support.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only.
Procedure on the right side is identical.

Remove the output shaft (1) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosening the brake caliper, left and right

NOTE: Perform the steps on the right and left side.

Releasing the brake caliper

Release brake hose from the brackets (1).
NOTE: Only perform the operation on the left side.

Release the cable of the brake pad wear sensor from the holders (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen nuts (1).
Pull the brake caliper from the stud bolts towards the rear.
Do not hang the brake caliper from the brake hose.

Courtesy of BMW OF NORTH AMERICA, INC.

Tie up the brake caliper (1) with the special tool 2 413 317 .

Courtesy of BMW OF NORTH AMERICA, INC.

Releasing cable from vertical acceleration sensor on left and right

NOTE: Perform the steps on the right and left side.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

Unlock plug connection (2) and disconnect.
Remove cable (1) from holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching the cable of the wheel RPM sensor on the left and right

NOTE: Perform the steps on the right and left side.

Open sealing cap (1).
Unlock and disconnect the plug connection of the wheel speed sensor (2).
Release the cable of wheel speed sensor from the bracket (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching coolant hoses from the front axle support

Detach all coolant hoses from the front axle support.

Removing the mounting of swivel bearing at the top left and right

NOTE: Perform the steps on the right and left side.

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing the top swivel bearing attachment

Loosen and remove special tool 2 413 317 from the swivel bearing (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparing the mobile lifting table for work on the engine (removing the engine with transmission)

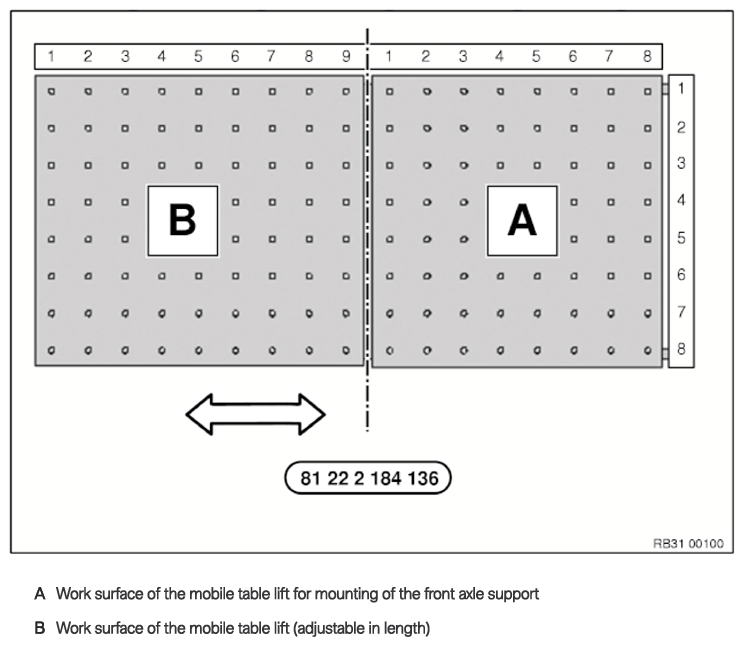

Mobile table lift

Courtesy of BMW OF NORTH AMERICA, INC.

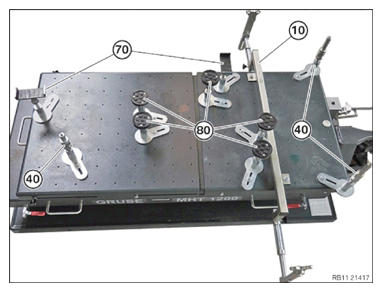

Work surface A:
- Position mounts 40 at coordinates 7/1 and 7/8. A slight protrusion towards the lifting table is permissible.
- Position mounts 10 at coordinates 4/1 and 5/8.
- Position mounts 80 at coordinates 2/3 and 3/5 and 3/8.
- Position mount 70 at coordinates 3/1.
Work surface B:

Courtesy of BMW OF NORTH AMERICA, INC.
- Position mounts 80 at coordinates 7/4 and 7/5.
- Position mount 70 at coordinates 1/3.
- Position mount 40 at coordinates 3/7.

WARNING: Vehicle falling down from a vehicle lift.
Mortal hazard!

Observe Owner's Manual for vehicle hoist.
Do not exceed the approved load-carrying capacity and weight distribution of the vehicle lift.
Depending on the load situation of the vehicle: Perform weight compensation, particularly during removal of heavy components, e.g. engine.
Make sure the vehicle lift complies with the relevant statutory or country-specific accident prevention provision and is serviced according to the regulations.
Observe the instructions of the repair instructions when positioning the swivel arms.

Courtesy of BMW OF NORTH AMERICA, INC.

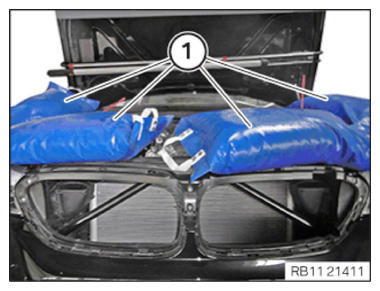

Provide the necessary weight compensation using sandbags (1).
Position the lifting table under the front subframe.

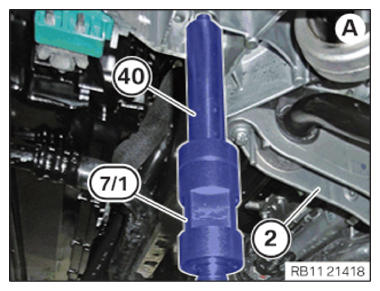

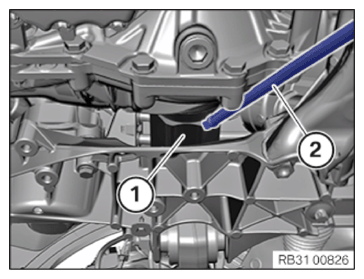

Ensure that the recess for the front subframe at the front left is precisely over mount 40 with coordinates 7/1 of work surface A.
The mounts 40 must be positioned under the front subframe in the vicinity of the bearing for the anti-roll bar at the front left (2).

All mounts must be aligned correctly and positioned under the respective mounting points.

Courtesy of BMW OF NORTH AMERICA, INC.

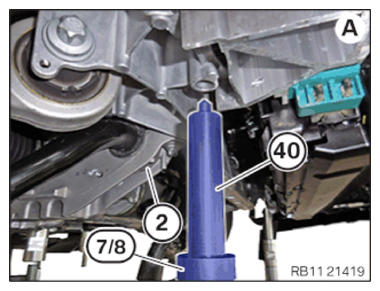

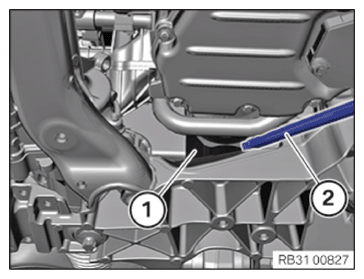

Ensure that the recess for the front subframe at the front left is precisely over mount 40 with coordinates 7/8 of work surface A.
The mounts 40 must be positioned under the front subframe in the vicinity of the bearing for the anti-roll bar at the front right (2).

All mounts must be aligned correctly and positioned under the respective mounting points.

Courtesy of BMW OF NORTH AMERICA, INC.

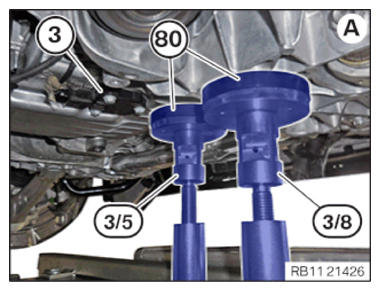

Ensure that the lower engine oil pan is precisely over mount 80 with coordinates 3/5 of work surface A.
The mounts 80 must be positioned under the lower engine oil pan in the vicinity of the oil-level sensor (2).

All mounts must be aligned correctly and positioned under the respective mounting points.

Courtesy of BMW OF NORTH AMERICA, INC.
Ensure that the front subframe is over mount 80 with coordinates 3/8 of work surface A.
The mounts 80 must be positioned under the lower engine oil pan in the vicinity of the oil-level sensor (2).

All mounts must be aligned correctly and positioned under the respective mounting points.

Courtesy of BMW OF NORTH AMERICA, INC.

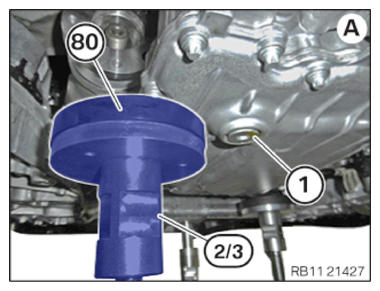

Ensure that the lower engine oil pan is over mount 80 with coordinates 2/3 of work surface A.
The mount 80 must be positioned under the lower engine oil pan in the vicinity of the oil drain plug (1).

All mounts must be aligned correctly and positioned under the respective mounting points.

Courtesy of BMW OF NORTH AMERICA, INC.
Ensure that the lower engine oil pan is over mount 80 with coordinates 2/3 of work surface A.
All mounts must be aligned correctly and positioned under the respective mounting points.

Courtesy of BMW OF NORTH AMERICA, INC.

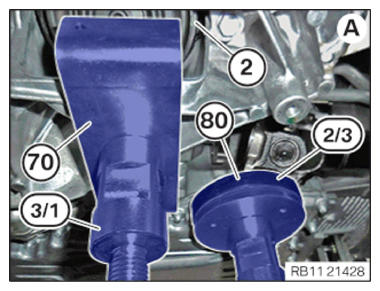

Ensure that the front subframe is over mount 70 with coordinates 3/1 of work surface A.
The mount 70 must be positioned under the front subframe in the vicinity of the left engine mount (2).

All mounts must be aligned correctly and positioned under the respective mounting points.

Courtesy of BMW OF NORTH AMERICA, INC.

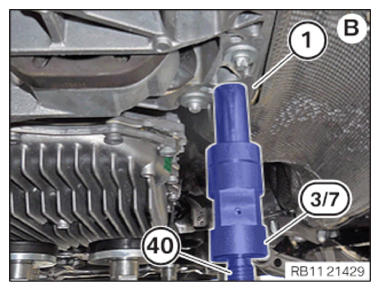

Ensure that the transmission cross member is over mount 40 with coordinates 3/7 of work surface B.
All mounts must be aligned correctly and positioned under the respective mounting points.

Courtesy of BMW OF NORTH AMERICA, INC.

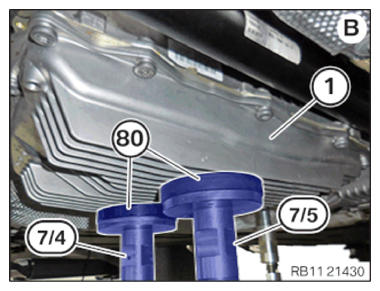

Ensure that the transmission oil pan (1) is over mounts 80 with coordinates 7/4 and 7/5 of work surface B.
All mounts must be aligned correctly and positioned under the respective mounting points.

Courtesy of BMW OF NORTH AMERICA, INC.

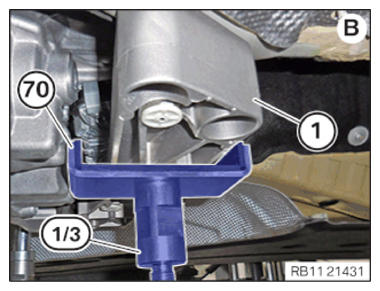

Ensure that the transmission cross member (1) is over mount 70 with coordinates 1/3 of work surface B.
All mounts must be aligned correctly and positioned under the respective mounting points.
Abut all mounts with threads to the mounts by hand.
Carefully pump the lifting table up if necessary.
Screw the mounts to the lifting table.

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the bolts on the front axle support

WARNING: Heavy component falling down or tipping.
Danger! Immobilization period-threatening injuries!

Before lowering or removing the front axle: Secure the engine in the installation position.
For additional information see: 11 00 670 SECURING ENGINE IN INSTALLATION POSITION .

NOTE: Perform the steps on the right and left side.

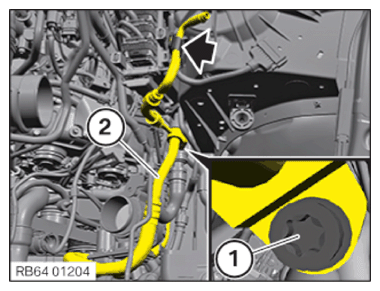

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

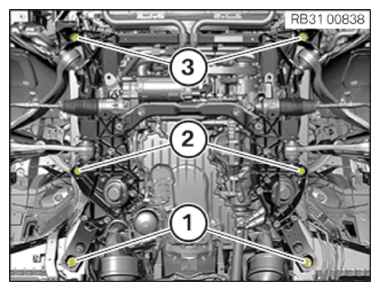

Loosen screws (1), (2) and (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).
Loosen screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Lowering the lifting table

CAUTION: Component with heavy weight.
Injury hazard!

Note component's center of gravity.
Support component using a jack.
Secure component against falling off the jack.

Secure the coolant line with coolant pump (1) to the vehicle.
Store the engine oil cooler (2) on the front part of the lifting table.
Carefully lower the lifting table.
When lowering, watch out for electrical lines, coolant hoses and colliding components.

Courtesy of BMW OF NORTH AMERICA, INC.
