Front (E39 - M5 & 540i)

WARNING: This page does not describe the selected car, but rather 127 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move steering wheel gear into straight ahead setting Marks on housing and steering shaft must line up. See Fig 1.
  2. Loosen clamping screws on tie rods. Adjust toe-in of wheel by turning the tie rod precisely to specification. See Fig 2. For alignment specification, see E39  under WHEEL ALIGNMENT SPECIFICATIONS.
  3. Ensure that the ball joints are not twisted and tighten clamping screws to specification. See E39  under TORQUE SPECIFICATIONS.

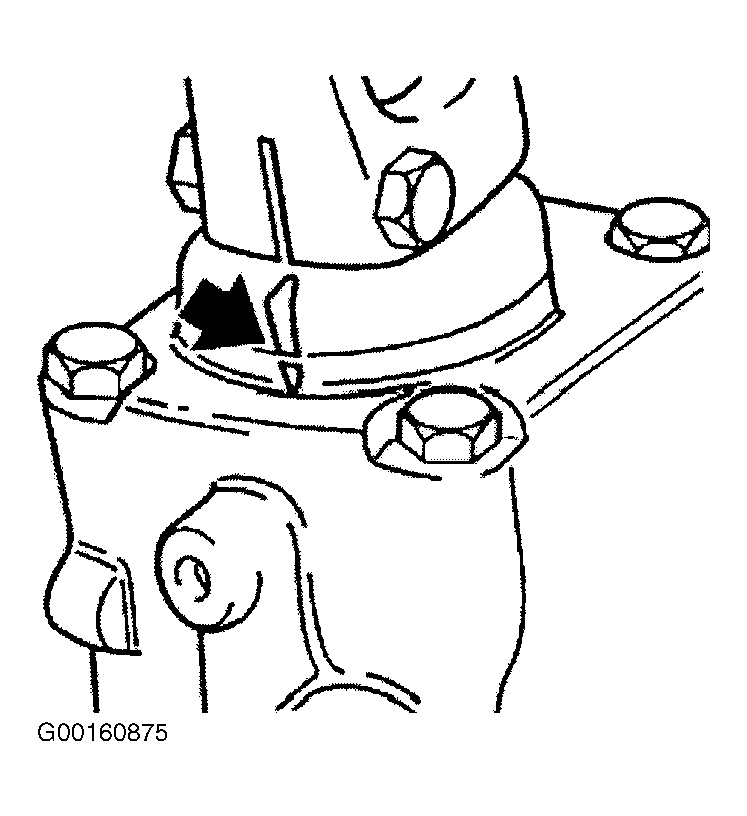

Fig 1: Matching Marks On Housing
G00160875Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Adjusting Toe-In
G00183252Courtesy of BMW OF NORTH AMERICA, INC.
