Front (E36 & E39 - Except M5 & 540i)

WARNING: This page does not describe the selected car, but rather 127 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position steering gear to straight-ahead position. Alignment marks on case and steering shaft should align. See Fig 1.
  2. Loosen lock nut on tie rod. See Fig 2. Adjust wheel toe-in to specified value by rotating steering tie rod. See E36  or E39  under WHEEL ALIGNMENT SPECIFICATIONS.
  3. Ensure that ball joint is not twisted. Tighten tie rod clamping nut to specification. See E36  or E39  under TORQUE SPECIFICATIONS.
  4. On cars equipped with Electronic Damper Control, it is essential after wheel alignment to perform a "steering angle check/adjustment" with the BMW Diagnosis System.

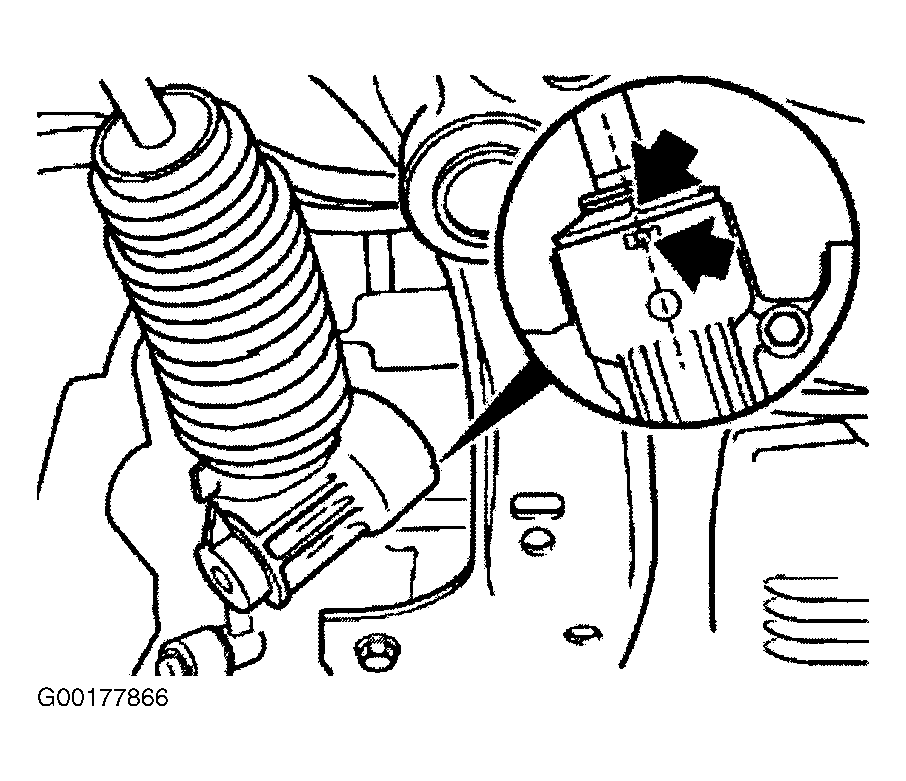

Fig 1: Locating Marking On Case
G00177866Courtesy of BMW OF NORTH AMERICA, INC.

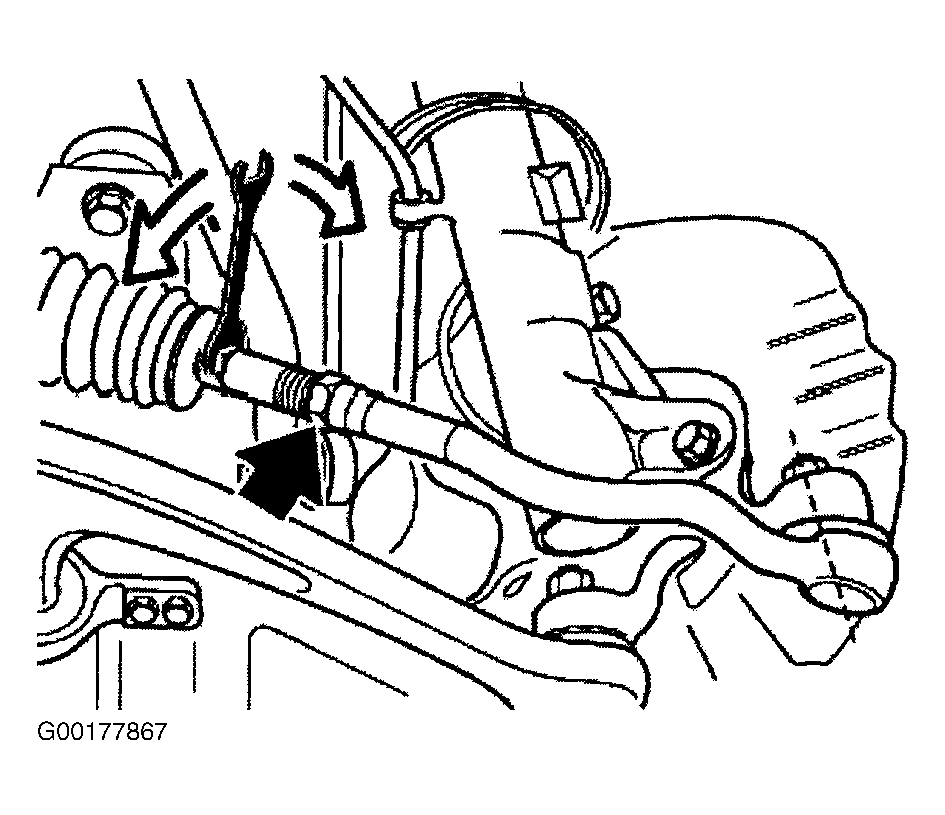

Fig 2: Adjusting Wheel Toe-In
G00177867Courtesy of BMW OF NORTH AMERICA, INC.
