Rear (E65)

WARNING: This page does not describe the selected car, but rather 127 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replace nut (1) and tighten down. Ensure eccentric washer is correctly located (2). See Fig 1. Tighten nut (1) to specification. See E65  under TORQUE SPECIFICATIONS.
  2. Release nut (1) again by 1/2 to 1 turn.
  3. Adjust camber with eccentric screw. See Fig 2. Adjust to specification. See E65  under WHEEL ALIGNMENT SPECIFICATIONS.
    4. CAUTION: If the nut (1) is tightened down more than 10 times during adjustment, it must be replaced again. The self-locking effect becomes too slight.
  4. Tighten nut (1). Ensure eccentric washer is correctly located (2). See Fig 1. Tighten to specification. See E65  under TORQUE SPECIFICATIONS.
  5. Adjust toe-in. See REAR (E65)  under TOE-IN ADJUSTMENT.

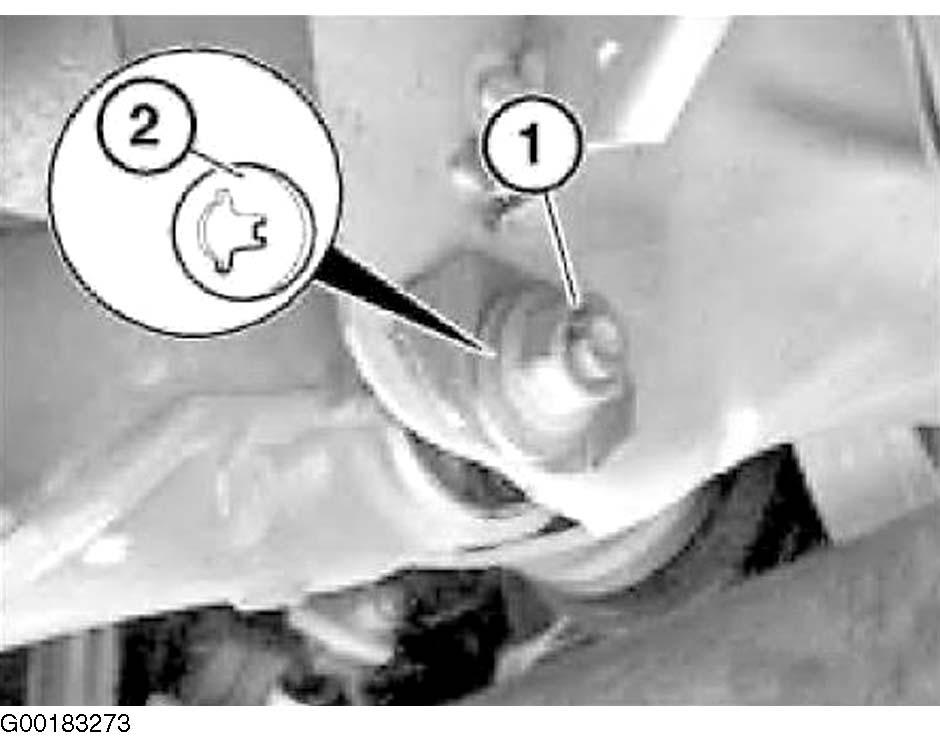

Fig 1: Locating Nut & Eccentric Washer
G00183273Courtesy of BMW OF NORTH AMERICA, INC.

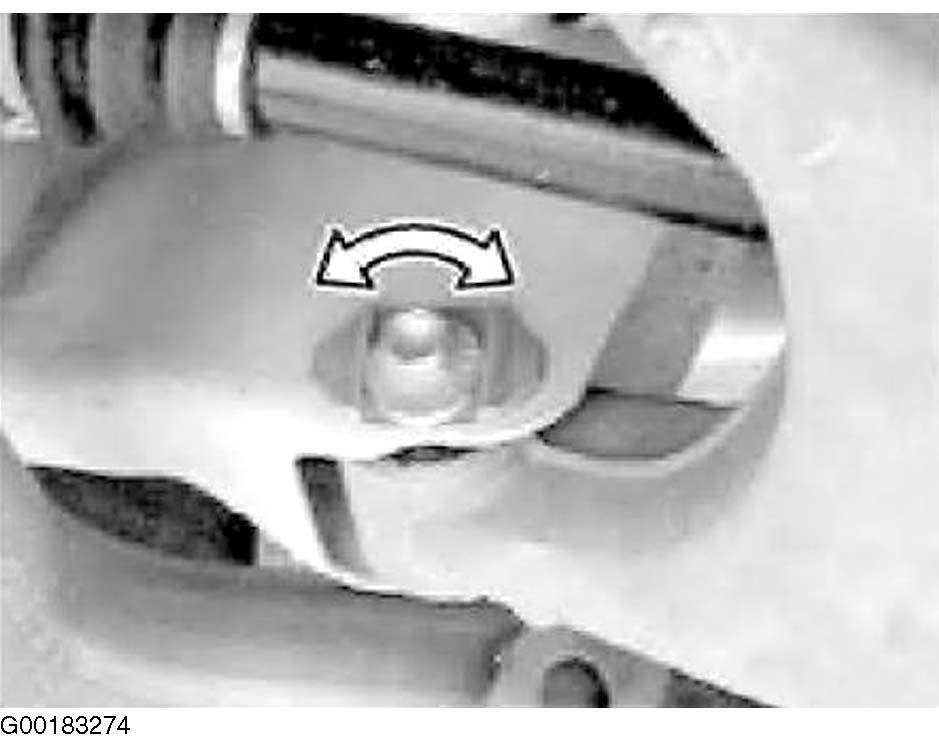

Fig 2: Adjusting Camber (E65 Rear)
G00183274Courtesy of BMW OF NORTH AMERICA, INC.
