Rear (E52)

WARNING: This page does not describe the selected car, but rather 127 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replace and tighten down disk collar nut. See Fig 1.
  2. Tighten disk collar nut to specification. See E52  under TORQUE SPECIFICATIONS.
  3. Release disk collar nut again by 1/2 to 1 turn.
  4. Adjust camber with eccentric screw. See Fig 2. Adjust camber to specification. See E52  under WHEEL ALIGNMENT SPECIFICATIONS.
    5. CAUTION: If the disk collar nut is tightened down more than 10 times during adjustment, it must be replaced again. The self-locking effect becomes too slight.
  5. Tighten down disk collar nut to specification. See E52  under TORQUE SPECIFICATIONS.
  6. Adjust toe-in. See Rear (E52)  under TOE-IN ADJUSTMENT.

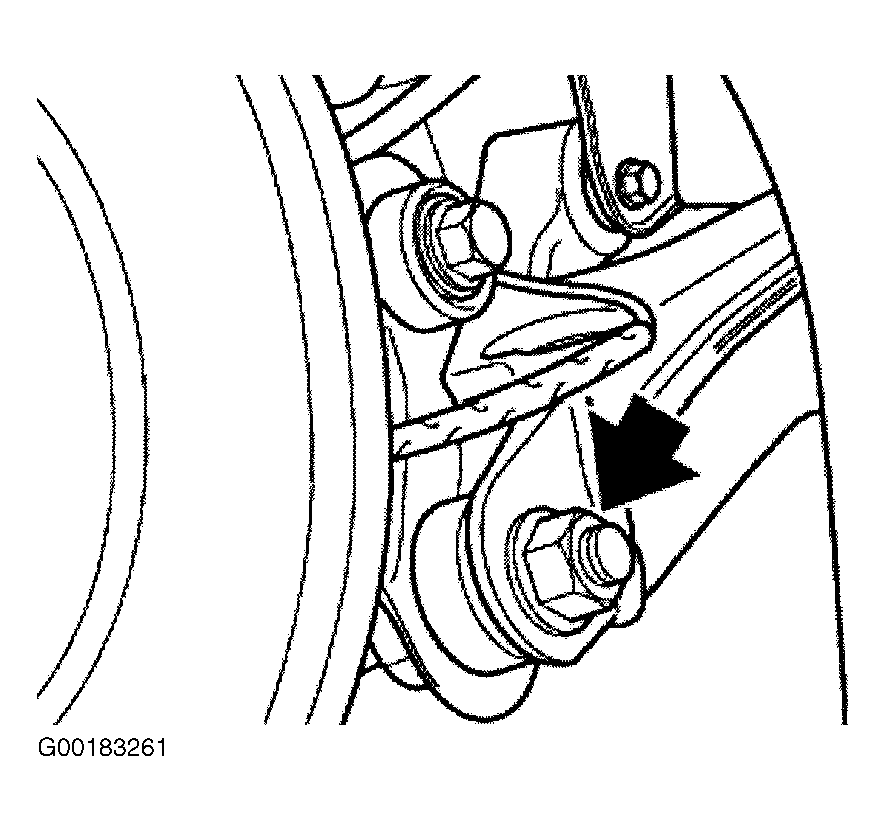

Fig 1: Locating Disk Collar Nut (E52)
G00183261Courtesy of BMW OF NORTH AMERICA, INC.

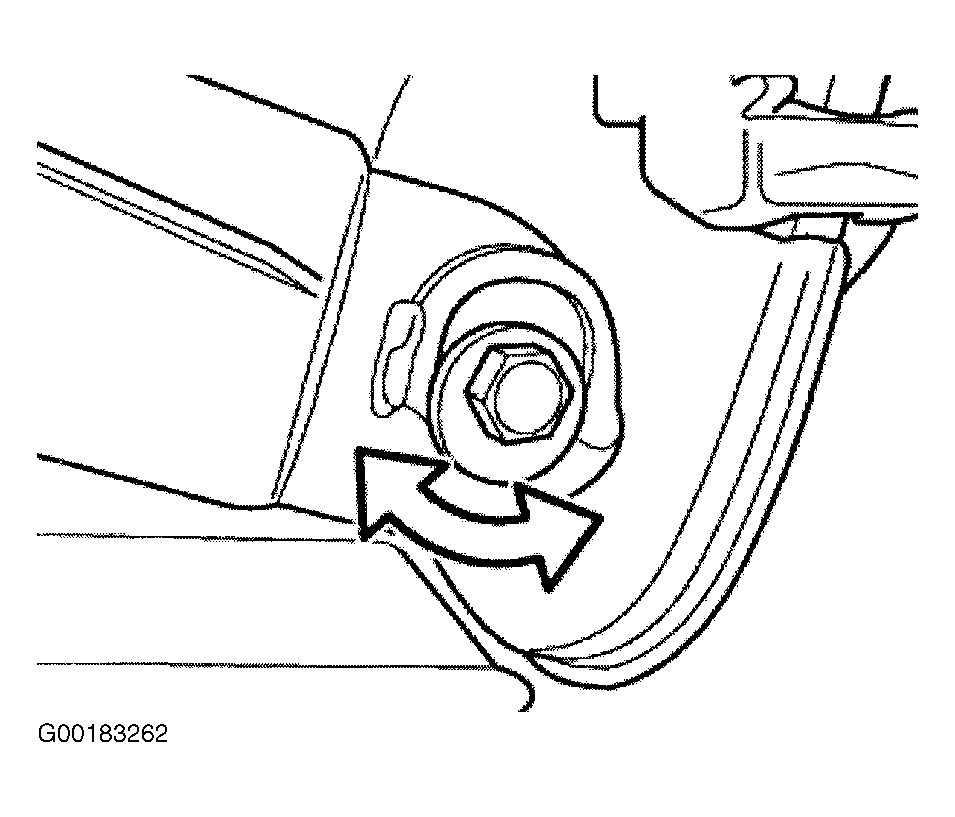

Fig 2: Adjusting Camber (E52)
G00183262Courtesy of BMW OF NORTH AMERICA, INC.
