Rear (E36)

WARNING: This page does not describe the selected car, but rather 127 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: A change in camber also means a change in toe. This means that camber must be adjusted first.

Replace and tighten down hexagon collar nut. The eccentric washer must be located between the support cams. Tighten collar nut to specification. See E36 under TORQUE SPECIFICATIONS.
Slacken hexagon collar nut approximately 1/2 turn. See Fig 1. Turn eccentric screw and adjust camber to specification. See E36 under WHEEL ALIGNMENT SPECIFICATIONS.

CAUTION: If the hexagon collar nut is tightened down more than 10 times during adjustment, it must be replaced. The self-locking effect becomes too slight.

Tighten hexagon collar nut again to specification. See E36 under TORQUE SPECIFICATIONS.

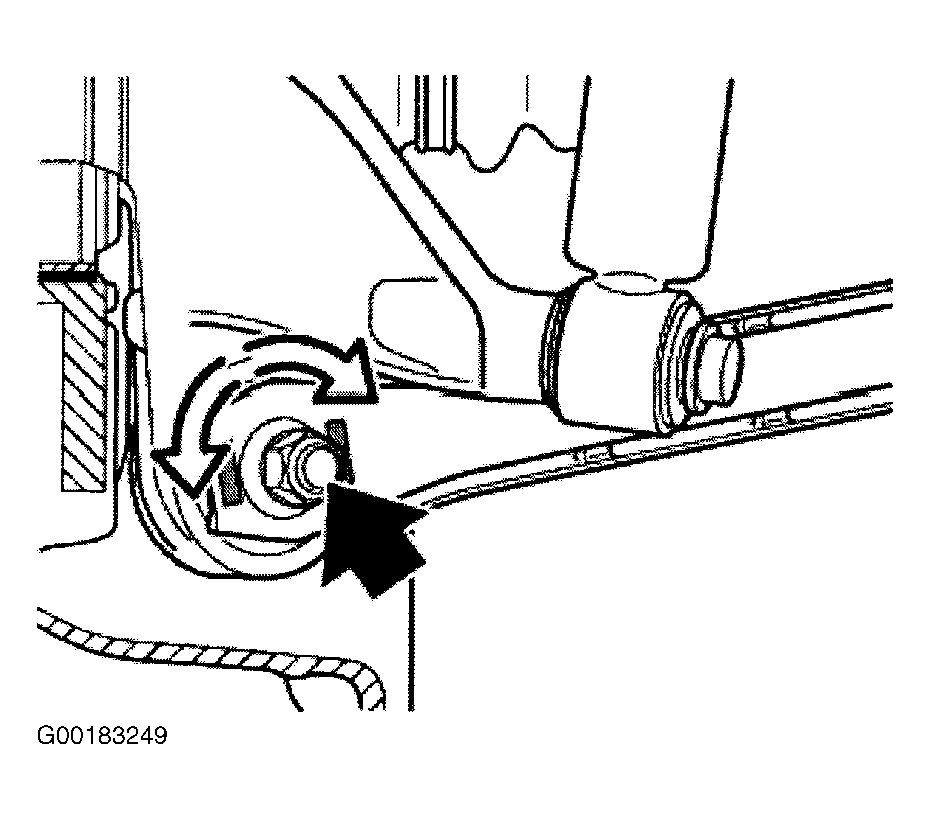

Fig 1: Locating Hexagon Collar Nut

Courtesy of BMW OF NORTH AMERICA, INC.
