Installing the crankshaft sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

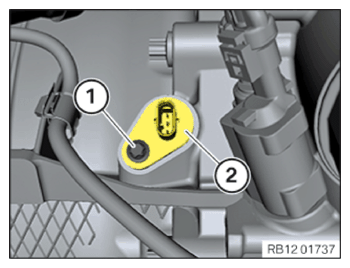

Position crankshaft sensor (2).
Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Crankshaft sensor
M6x16 screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Position heat shield (2).
Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

heat shield
M6x16 screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
