Removing the differential pressure sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .

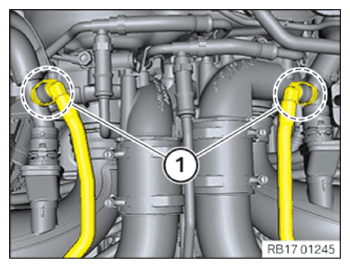

- Unlock tank ventilation lines (1) and disconnect.
- Detach coolant line in the areas (1).
- Place the coolant line aside.
- Unlock plug connection (2) and disconnect.
- Twist the differential pressure sensor (1) counter-clockwise and unlock.
- Remove the differential pressure sensor (1).
