Install differential pressure sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

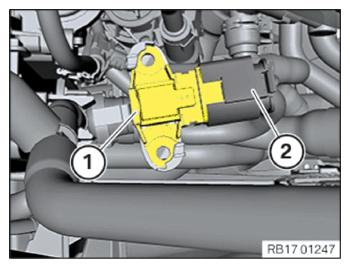

Position differential pressure sensor (1).
Turn differential pressure sensor (1) clockwise and lock.
Connect and lock the plug connection (2).

Courtesy of BMW OF NORTH AMERICA, INC.

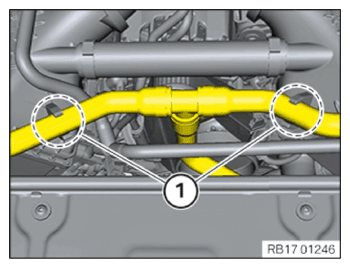

Engage coolant line in the areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

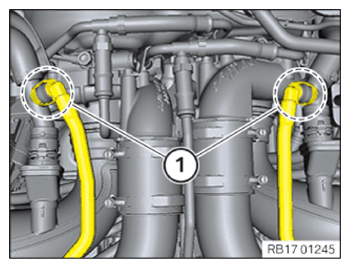

Connect and lock the tank vent lines (1).

G15179702

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING ACOUSTIC COVER .
