Wire starter for window final assembly
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Wire starter for window final assembly
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Order number:
83 30 2 336 541

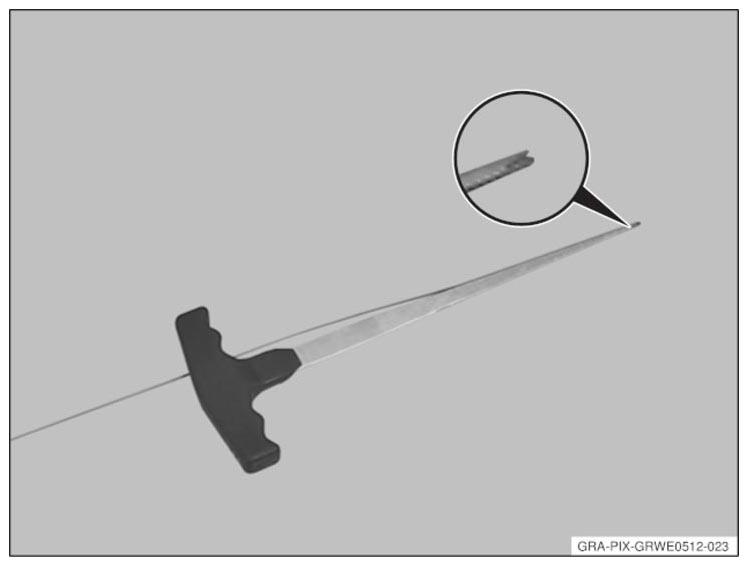

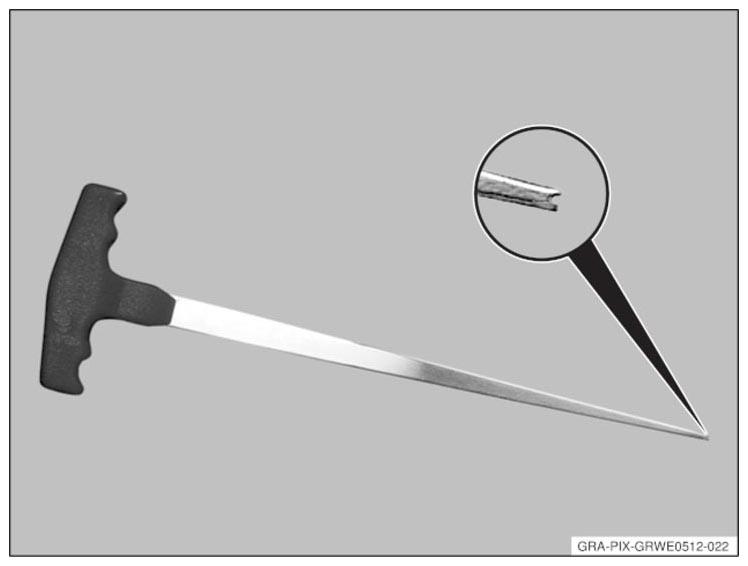

The wire starter with a "T" handle has a sturdy steel blade. The wire is inserted in the notched point and pushed through the adhesive bead with constant pressure.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Example application:
 Courtesy of BMW OF NORTH AMERICA, INC.
|

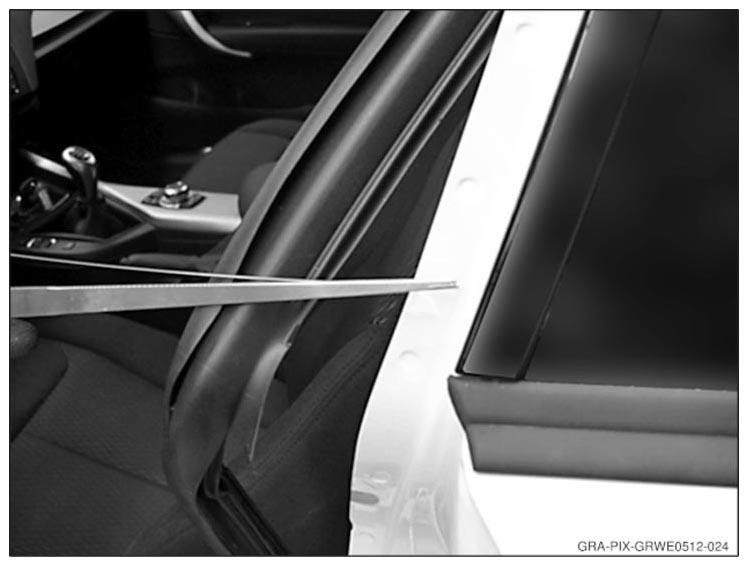

Application example showing F21 side window.
