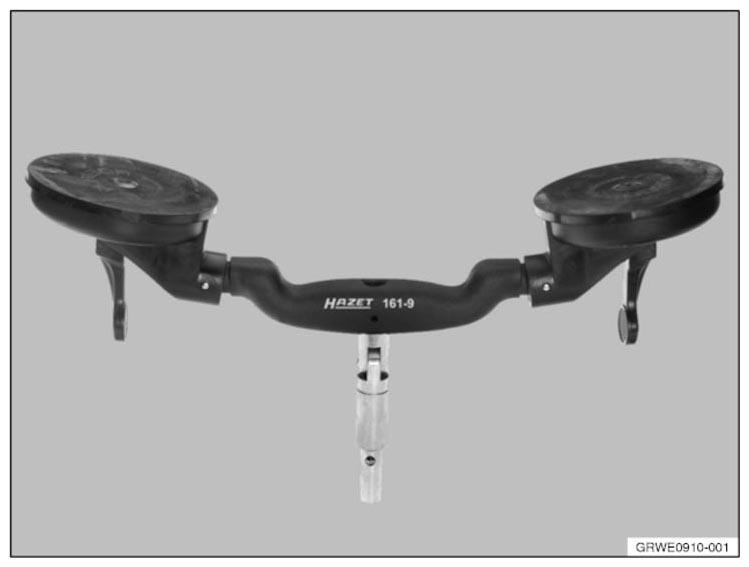

Vacuum lifting tool, Hazet
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Vacuum lifting tool, Hazet
Order number: 81 64 2 184 377
Technical data:
- Vacuum lifting tool with pivoting vacuum element
- Diameter 120 mm
- Can be attached to Hazet tool cart types 1 79 and 1 80
Scope of delivery:
Set of vacuum lifting tools (2 units)

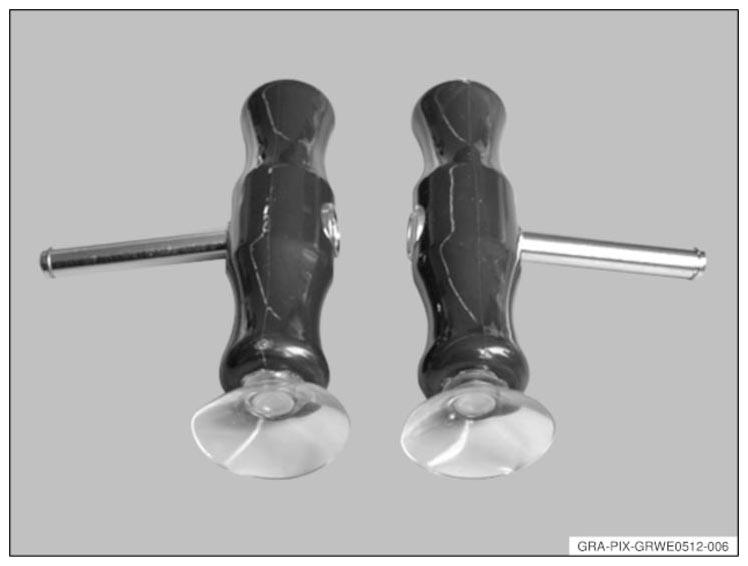

Wire pull handle with suction element
Wire pull handle with suction element
Order number: 81 43 2 326 501
Advantages of the new pull handle:
Pull handles can be secured with suction cups to the vehicle glass or body during the individual operations. This prevents damage to the paint.
Scope of delivery:
A set contains two wire pull handles.

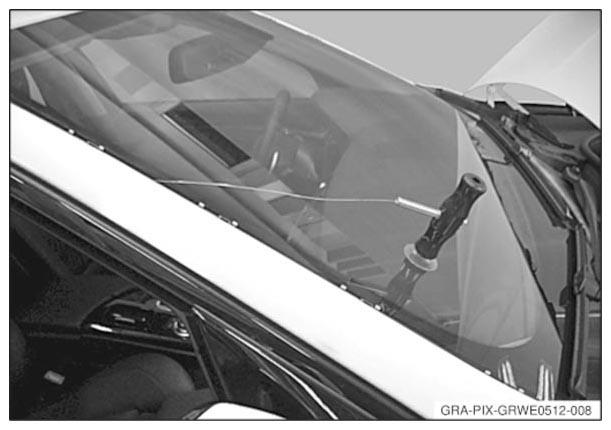

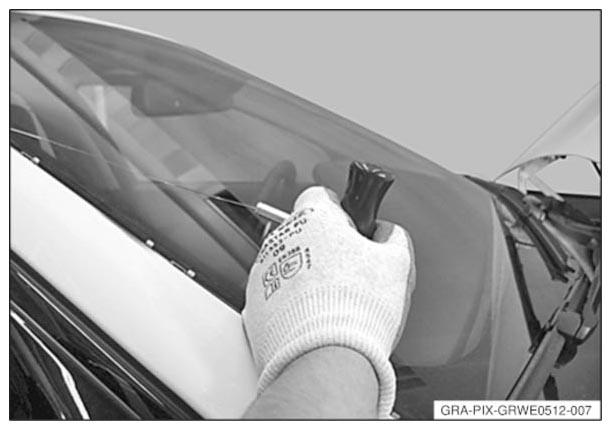

Example application:
