Supplying the new parts required
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

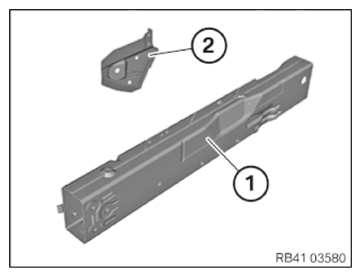

- Procure the following new parts (see applicable BMW parts catalogue):
engine carrier (1)
Engine mount reinforcement (2)
NOTE: TECHNICAL INFORMATION
For additional information see:
OVERVIEW OF CONSUMABLES (APPLICABLE BMW PARTS CATALOGUE) . - Supply the following consumables:
| Material | Quantity |
|---|---|
| Adhesive K1 | 1 |
| Blind rivet N1 | 20 |
| Blind rivet N2 | 18 |
| Coarse thread bolt | 5 |
| Earth pin | 1 |
| EMC screw | 3 |
| Cleaning agent R1 | 1 |
| Cleaning agent R2 | 1 |
| Sealing compound D2 | 1 |
| Cavity protection wax remover |
