Removing the guide sleeve for the rear head restraint
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
NOTE:
The description is provided only at one component. The procedure is the same for all other components.

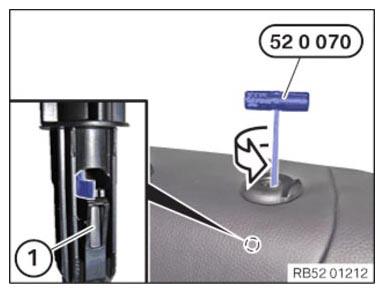

- Push the detent (1) inward with the special tool 0 494 627 (52 0 070) .
- Remove the guide sleeve towards the top.
