Removing the cover of the right camber control arm

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cover of the camber control arm

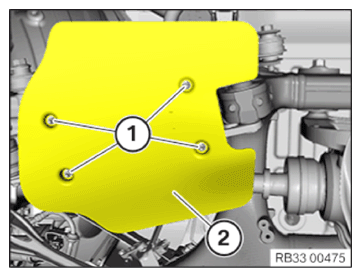

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Release the screws or nuts (1).
Remove the cover (2) of the camber link.

Courtesy of BMW OF NORTH AMERICA, INC.
