Remove top automatic air flap control
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

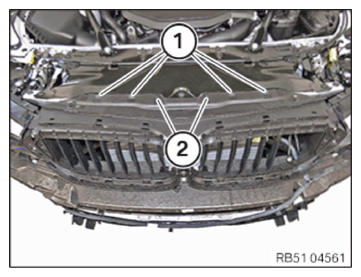

- Loosen screws (1).
- Loosen the expanding rivet (2).

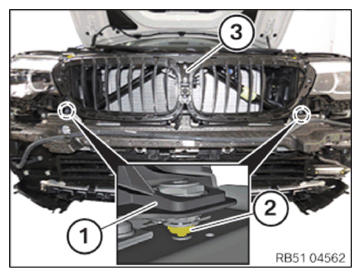

- Lever out holder (1) on the left and right upwards out of the ball head (2) using the special tool 0 496 569 (00 9 325) .
- Remove top automatic air flap control (3) forwards.
- Unlock associated plug connection and disconnect.
