Remove the seat cover with the cushion for the front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Unlock plug connection (1) and disconnect.
- Feed out the wiring harness from the seat mechanism.

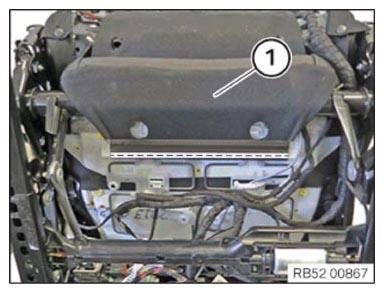

- Detach the seat cover (1) in the highlighted area.

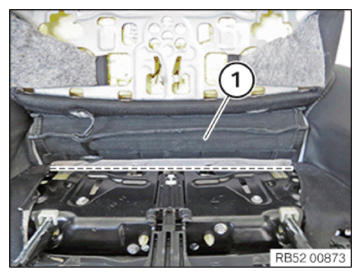

- Insert the seat cover (1) between the backrest and the seat surface.

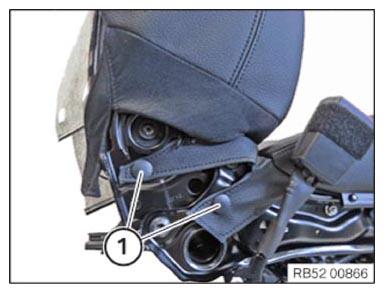

- Loosen clips (1) left and right.
- Loosen the clip (1) left and right.
- Loosen trim (1) from clamps (2) and feed out downwards.
Releasing the ground cable of the seat occupancy mat (CIS)

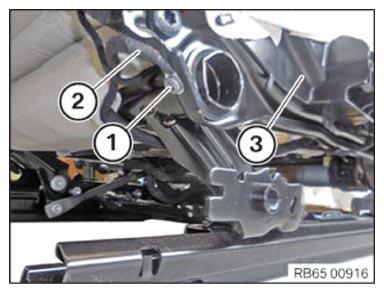

- Loosen screw (1).
- Remove the ground cable (2) for the seat occupancy mat from the seat mechanism (3).
- Detach the welt from the seat mechanism.
- Remove the seat cover (1) and upholstery from the seat mechanism.
If necessary, remove the associated wiring harness.
- Unlock plug connection (1) and disconnect.
- Feed out the wiring harness from the seat mechanism.
- Detach the seat cover (1) in the highlighted area.
- Insert the seat cover (1) between the backrest and the seat surface.
- Loosen clips (1) left and right.
- Loosen the clip (1) left and right.
- Release the trim (1) from the clamps (2) and remove in a downwards direction.
- Shift the thigh support (1) completely to the front.

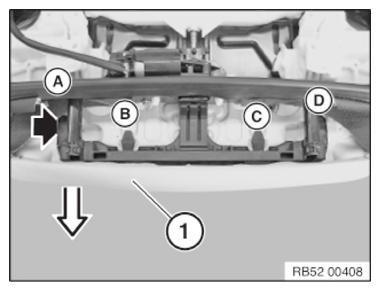

- Raise the detents consecutively in sequence from (A) to (D) and pull the thigh support (1) forward at the same time.
- Detach the seat cover (1) in the highlighted area.
- Detach the welt from the seat mechanism.
- Remove the seat cover (1) and cushion from the seat mechanism.
- Unlock associated plug connections and disconnect.
