Remove the roof trim strip on the left and right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove the roof trim strip

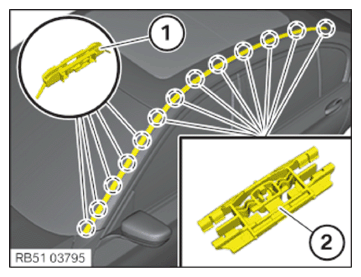

- Starting from the rear, lever out the roof trim strip upward using special tool 0 496 569 (00 9 325) from the clamps (1) and (2) .
- Remove the roof trim strip.
- On vehicles with a CFRP roof, the clamps (2) must always be replaced.
