Remove instrument panel trim

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the right and left side.

Remove the sound insulation (1) .
Loosen screw (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Release all plug connections and cable clips (arrows) behind the glove compartment.

Courtesy of BMW OF NORTH AMERICA, INC.
Unscrew the screws (1) the back of the glove compartment.

Courtesy of BMW OF NORTH AMERICA, INC.
Open glovebox.

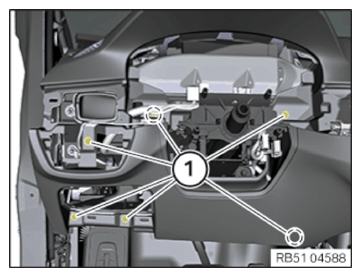

Loosen screws (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

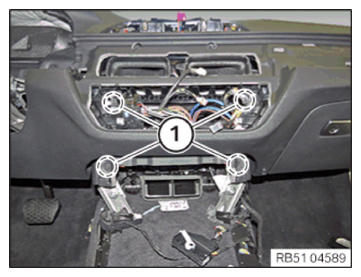

Loosen screws (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1) .
NOTE: TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Pull the instrument panel trim back slightly.
If necessary, unlock and disconnect additional plug connections.
Remove the instrument panel trim from the vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.
