Releasing the camber control arm and trailing arm on the left and right from the rear axle support
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the right and left side.
- Loosen screw (1) .
- Release the attachment rod (2)
of the ride height sensor from the trailing arm.

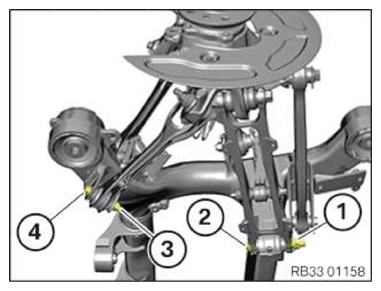

- Release the nuts (1) and (3) .
- Remove the eccentric washer.
- Pull out the eccentric bolt (2)
and the screw (4)
.
Camber control arm and the trailing arm are released from the rear axle support.
