Releasing air conditioning compressor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Secure component against falling.

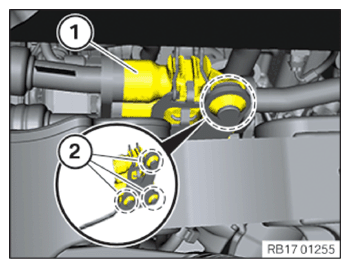

Unclip the transmission oil thermostat (1) upward from the decoupling elements (2) on the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.

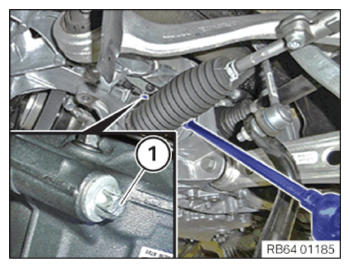

Release the screw (1) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

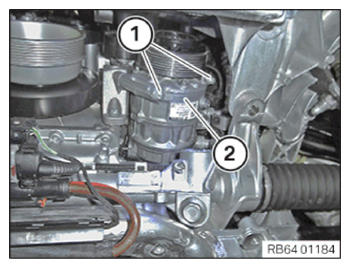

Loosen the screws (1) on the air conditioning compressor (2) .
Place the air conditioning compressor (2) to the side.

Courtesy of BMW OF NORTH AMERICA, INC.

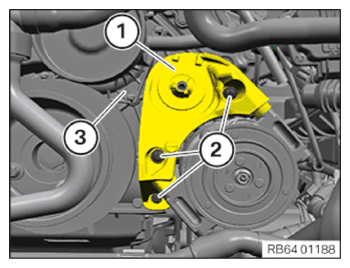

Unscrew screws (2) on the bearing bracket (1) .
Pull off the bearing bracket (1) from the crankcase (3) , guide it out downward and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

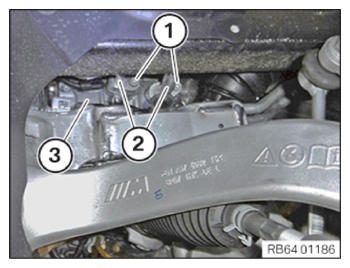

Release the screws (1) and remove the refrigerant lines (2) from the air conditioning compressor (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

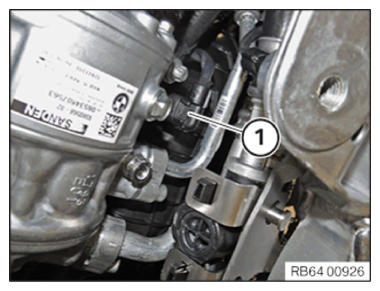

Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

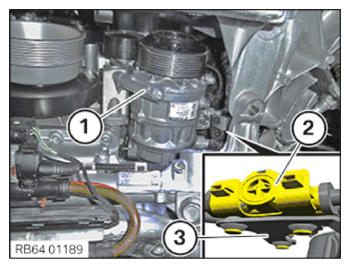

Shift the transmission oil thermostat (2) slightly to the side.
Place the air conditioning compressor (1) to the side.
NOTE: Tie up the air conditioning compressor.

Courtesy of BMW OF NORTH AMERICA, INC.
