Release tool
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

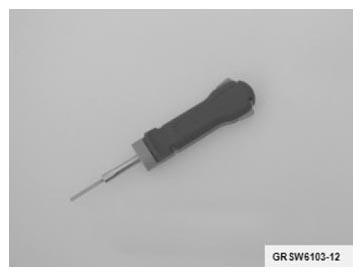

0495385
Release tool 610303 Special tool
NOTE:
(Release tool for round systems of D=2.5) Replaces special tool 61 1 132 from September 2005
Storage Location:
Individual
Consisting of:
4 = 0495386
sleeve
NOTE:
(Replacement sleeve D = 2.5) Replaced as of 09/2005 special tool 61 1 156
 Courtesy of BMW OF NORTH AMERICA, INC.
|

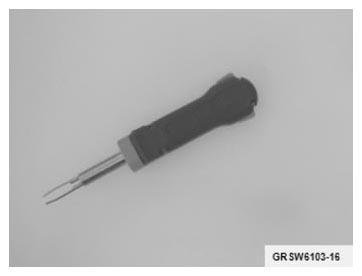

0495399
Release tool 610317 Special tool
NOTE:
(Release tool for load current contact 8) Replaces special tool 61 1 200 from September 2005
Storage Location:
Individual
 Courtesy of BMW OF NORTH AMERICA, INC.
|
 Courtesy of BMW OF NORTH AMERICA, INC.
|

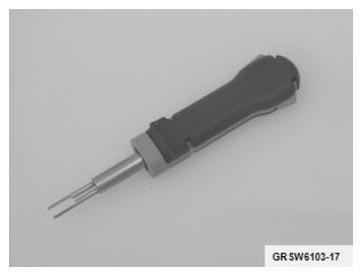

0495398
Release tool 610316 Special tool
NOTE:
(Release tool for flat spring contacts with double retaining tongue "SPT 4.8" "JPT 2.8") Replaces special tool 61 1 136 from September 2005
Storage Location:
Individual
 Courtesy of BMW OF NORTH AMERICA, INC.
|
0495394
Release tool 610312 Serial tool
NOTE:
(Release tool for flat spring contact with a retaining lug (1.6 mm)) Replaces special tool 61 1 134 from September 2005
Storage Location:
Individual
0495396
Release tool 610314 Special tool
NOTE:
(Release tool for flat spring contact with a retaining tongue (2.7 mm)) Replaces special tool 61 1 135 from September 2005
Storage Location:
Individual
 Courtesy of BMW OF NORTH AMERICA, INC.
|
0495382
Release tool 610300 Universal tool
NOTE:
(Release tool (complete set)) Replaces the special tool 61 1 150
, from 09/2015 extended by 2 412 134 and 2 412 135
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Storage Location:
Individual (Cable cabinet 1 and 2)
Individual (Cabinet 550 and 350)
Consisting of:
1 = 0495383
3 = 0495385
5 = 0495387
7 = 0495389
9 = 0495391
1 = 0495394
13 = 0495395
14 = 0495396
15 = 0495397
2 = 0495398
17 = 0495399
18 = 0495400
0495401
21 = 0495403
22 = 0495404
23 = 0495405
24 = 0495406
29 = 0495407
5 = 0495578
6 = 0495676
7 = 0495677
1 = 0495678
1 = 0495680
2 = 0496332
3 = 0496333
0495408
Release tool 610400 Universal tool
NOTE:
(Release tools (extension set) for MINI) For unlocking the secondary lock and the new contacts in the N12 and N14 engine. From 02/2008 extended by 61 0 403
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Storage Location:
Individual (Cable cabinet 1 and 2)
Individual (Cabinet 550 and 350)
Consisting of:
- 0495409
- 0495410
- 0496376
0496340
Release tool 611100 Universal tool
NOTE:
(release set) For releasing assorted electrical contacts on all 4-cylinder diesel engines.
Storage Location:
Individual (Cable cabinet 1 and 2)
Individual (Cabinet 550 and 350)
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Consisting of:
- 0496341
- 0496342
- 0496343
- 0496344
- 0496345
