Procedure for toe and camber adjustment in the design position
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

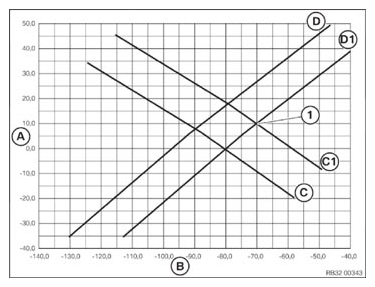

| A | Track |
| B | Camber |
| C | Track/camber adjustment at wishbone |
| D | Track/camber adjustment at camber control arm |
| 1 | Actual value |
| 2 | Intermediate adjustment value |
| 3 | Setpoint value in KO position |
Description using example value entered in diagram
- Read the actual value (1) for toe/camber on the axle alignment stand and enter it in the diagram (example: toe -10', camber -90')
- Draw parallel line to "wishbone" line (C) through entered actual value (1)
- Intersection point (2) on "camber link" line (D) gives intermediate toe/camber adjustment value (example: toe -03', camber -98')
- Setting the intermediate adjustment value (2) by turning adjustment screw of control arm
- Setting the setpoint value (3) for toe/camber (example: toe 07', camber -90') by turning the adjustment screw on the camber link (toe/camber value moves along the line (D))
