Preparing the special tool
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
In a profile rail pair, two profile rails are connected to one another by gearing.
In a profile rail pair, two profile rails are connected to one another by gearing.

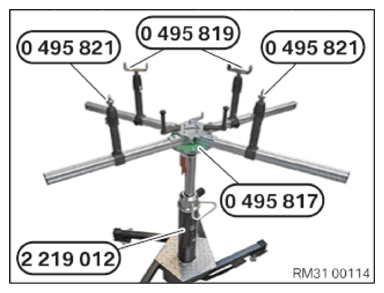

- Position the special tool 0 495 817 (31 5 251) on the special tool 2 219 012 with the help of a support person.
- Insert the special tools 0 495 821 (31 5 255) into the telescopic supports of a profile rail pair.
- Insert the special tools 0 495 819 (31 5 253) in the telescopic supports of the other profile rail pair.
