Pinchweld scraper set

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 81 62 0 410 436

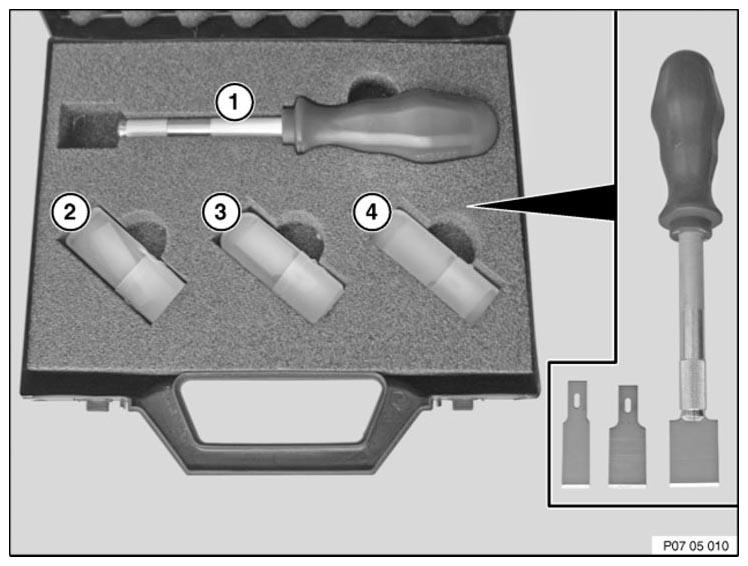

The pinchweld scraper set is delivered in-case and consists of:

Handgrip for mounting the individual blades
Blade set; 1 0 pcs. with blade width 1 2 mm
Blade set; 1 0 pcs with blade width 1 6 mm
Blade set; 1 0 pcs with blade width 20 mm

The individual blades are inserted into the handgrip and mounted on a knurled screw. The blades can be ordered separately (10 pcs per packaging and width).

Dimensions/weight of case:

Lengths 240 x width 2?0 x height 450 in mm
Weight approx. 380 g

Individual parts for re-order:

Order number	Designation
8162 0 410 806	Blade set 12 mm (10 pcs)
8162 0 410 807	Blade set 16 mm (10 pcs)
8162 0 410 808	Blade set 20 mm (10 pcs)
